A/C LEAK-DETECTION ADDITIVE

Article No. 0892764010

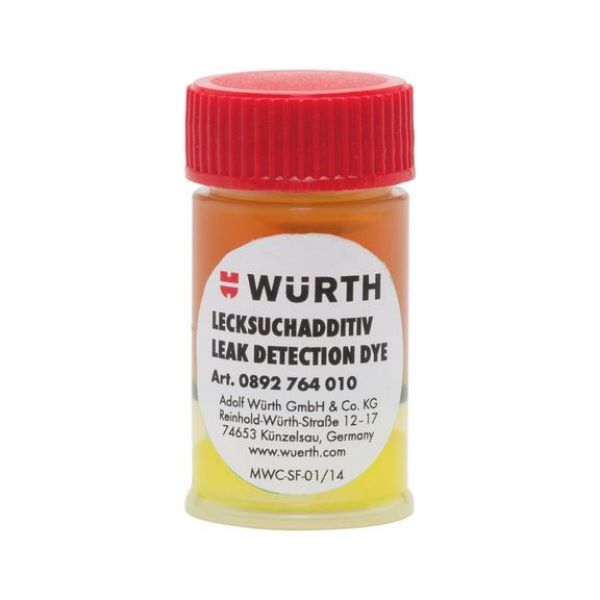

Air-conditioning leak detection dye cartridge LKDETADD-A/C-7,5ML
€9.00 inc. VAT price per 1 PCS
LOW STOCK
*
+ -
Fluorescent additive for locating leaks in R134a climate systems without climate service device.

Air-conditioning service unit not required to perform a service

Portable

Notice

Adapter art. no. 0764000114 can only be used with a 134a coupling.

The usage instructions are recommendations based on the tests we have conducted and our experience; carry out your own tests before each application. Due to the large number of applications and storage and processing conditions, we do not assume any liability for a specific application result. Insofar as our free customer service provides technical information or acts as an advisory service, no responsibility is assumed by this service except where the advice or information given falls within the scope of our specified, contractually agreed service or the advisor was acting deliberately. We guarantee consistent quality of our products. We reserve the right to make technical changes and further develop products.

Fluorescent additive for locating leaks in R134a climate systems without climate service device.

Air-conditioning service unit not required to perform a service

Portable

Notice

Adapter art. no. 0764000114 can only be used with a 134a coupling.

The usage instructions are recommendations based on the tests we have conducted and our experience; carry out your own tests before each application. Due to the large number of applications and storage and processing conditions, we do not assume any liability for a specific application result. Insofar as our free customer service provides technical information or acts as an advisory service, no responsibility is assumed by this service except where the advice or information given falls within the scope of our specified, contractually agreed service or the advisor was acting deliberately. We guarantee consistent quality of our products. We reserve the right to make technical changes and further develop products.

Application area

For reliable localisation of leaks and micro-leaks in R134a air-conditioning systems. Can be used in air-conditioning systems with electric compressors (hybrid, start/stop, electric vehicles).

Instructions
  • Screw the filling adapter, art. no. 0764000114, to A/C leak detection additive, art. no. 0892764010.

  • Then insert the filling adapter into the application gun, art. no. 0891764010.

  • Inject the entire contents of the cartridge into the air-conditioning circuit via the low-pressure side.
Products specifications
Contents 7.5 ml
Weight of content 7.27 g
Chemical basis Synthetic oil
Colour Yellow
Smell/fragrance Aromatic
Density 0.97 g/cm³
Shelf life from production 48 Month
Min. flashing point 88 °C

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Datasheets(1)

Safety data sheet 1

Products specifications
Contents 7.5 ml
Weight of content 7.27 g
Chemical basis Synthetic oil
Colour Yellow
Smell/fragrance Aromatic
Density 0.97 g/cm³
Shelf life from production 48 Month
Min. flashing point 88 °C
