Blind rivet, round pan head - RIV-MHD-A2/A2-(1,0-3,0)-3,2X7,0

Blind rivet, round pan head - RIV-MHD-A2/A2-(1,0-3,0)-3,2X7,0

Blind rivet, round pan head - RIV-MHD-A2/A2-(1,0-3,0)-3,2X7,0

Blind rivet, round pan head - RIV-MHD-A2/A2-(1,0-3,0)-3,2X7,0

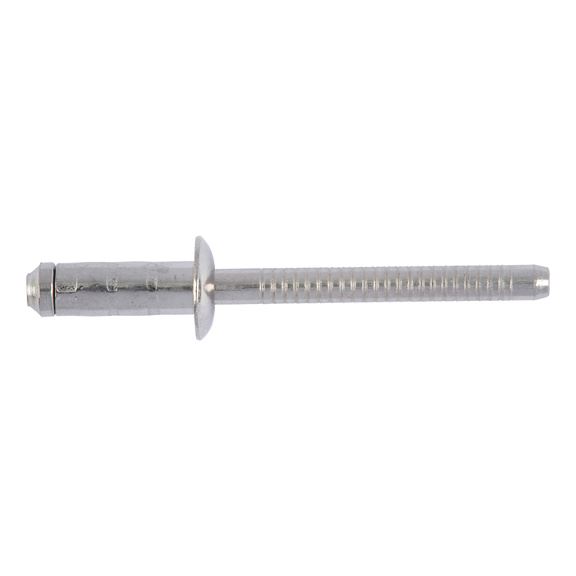

Blind rivet, round pan head

Article No. 09133230

Blind rivet rnd pan hd mid-strength stnlss stl A2 RIV-MHD-A2/A2-(1,0-3,0)-3,2X7,0 ZEBRA

€0.17 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Sleeve: A2 stainless steel. Mandrel: A2 stainless steel

Insertion bevels
Unique deformation behaviour
Mandrel engagement

Specification
Technical Information
Documents

Sleeve: A2 stainless steel. Mandrel: A2 stainless steel

Insertion bevels
Unique deformation behaviour
Mandrel engagement

Products specifications

Nominal diameter (d₁)	3.2 mm
Length (l₁)	7 mm
Min./max. grip range	1.0-3.0 mm
Head diameter (d_k)	6.5 mm
Head height (k₁)	1.2 mm
Shear-fracture load	1600 N
Tensile fracture load	2000 N
Material of the sleeve	Stainless steel A2
Material of the mandrel	Stainless steel A2
Surface of the sleeve	Plain
Surface of the mandrel	Plain

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Nominal diameter (d₁)	3.2 mm
Length (l₁)	7 mm
Min./max. grip range	1.0-3.0 mm
Head diameter (d_k)	6.5 mm
Head height (k₁)	1.2 mm
Shear-fracture load	1600 N
Tensile fracture load	2000 N
Material of the sleeve	Stainless steel A2
Material of the mandrel	Stainless steel A2
Surface of the sleeve	Plain
Surface of the mandrel	Plain
