Blind rivet, round pan head - RIV-MHD-ALU/A2-WHITE-(0,5-6,3)-4X10

Blind rivet, round pan head - RIV-MHD-ALU/A2-WHITE-(0,5-6,3)-4X10

Blind rivet, round pan head - RIV-MHD-ALU/A2-WHITE-(0,5-6,3)-4X10

Blind rivet, round pan head - RIV-MHD-ALU/A2-WHITE-(0,5-6,3)-4X10

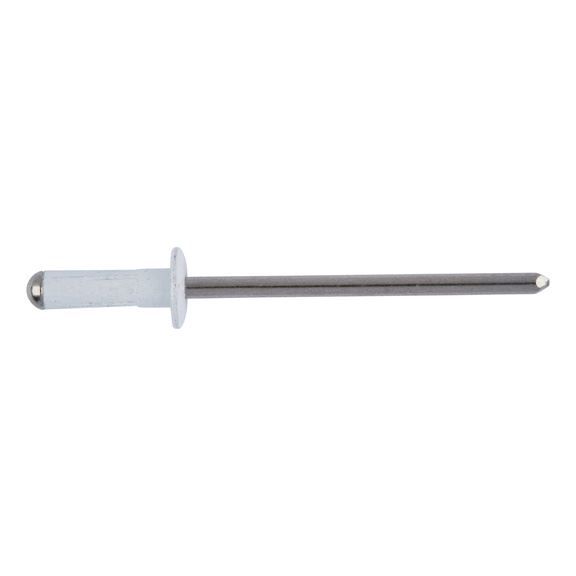

Blind rivet, round pan head

Article No. 0915774064

Aluminium blind rivet with round pan head white/A2 RIV-MHD-ALU/A2-WHITE-(0,5-6,3)-4X10 ZEBRA

€0.18 inc. VAT price per 1 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

Sleeve: Aluminium, painted white, pin: A2 stainless steel

Specification
Technical Information
Documents

Sleeve: Aluminium, painted white, pin: A2 stainless steel

Products specifications

Nominal diameter (d₁)	4 mm
Length (l₁)	10 mm
Min./max. grip range	0.5-6.3 mm
Head diameter (d_k)	8 mm
Head height (k₁)	1.4 mm
Shear-fracture load	1150 N
Tensile fracture load	1630 N
Material of the sleeve	Aluminium
Material of the mandrel	Stainless steel A2
Surface of the sleeve	Lacquered
Surface of the mandrel	Plain
Colour	White

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Nominal diameter (d₁)	4 mm
Length (l₁)	10 mm
Min./max. grip range	0.5-6.3 mm
Head diameter (d_k)	8 mm
Head height (k₁)	1.4 mm
Shear-fracture load	1150 N
Tensile fracture load	1630 N
Material of the sleeve	Aluminium
Material of the mandrel	Stainless steel A2
Surface of the sleeve	Lacquered
Surface of the mandrel	Plain
Colour	White
