Blind rivet with large round pan head - RIV-ALU/A2-(10,0-12,0)-K14-5,0X16,0

Blind rivet with large round pan head - RIV-ALU/A2-(10,0-12,0)-K14-5,0X16,0

Blind rivet with large round pan head - RIV-ALU/A2-(10,0-12,0)-K14-5,0X16,0

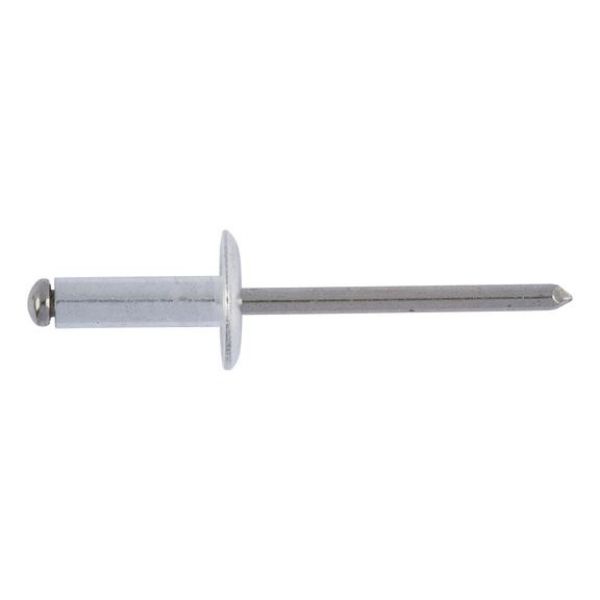

Blind rivet with large round pan head

Article No. 09398516

Blind rivet large truss head, alu/stnlss steel A2 RIV-ALU/A2-(10,0-12,0)-K14-5,0X16,0

€0.24 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Sleeve: Aluminium. Pin: A2 stainless steel.

Specification
Technical Information
Documents

Sleeve: Aluminium. Pin: A2 stainless steel.

Products specifications

Nominal diameter (d₁)	5 mm
Length (l₁)	16 mm
Min./max. grip range	10.0-12.0 mm
Head diameter (d_k)	14 mm
Head height (k₁)	1.8 mm
Drill hole diameter	5.1 mm
Shear-fracture load	2150 N
Tensile fracture load	3100 N
Material of the mandrel	Stainless steel A2
Material of the sleeve	Aluminium
Surface of the mandrel	Plain
Surface of the sleeve	Plain
RoHS-compliant	Yes
Product weight (per item)	3.700 g

Würth Catalogue(2)

Catalogue page as PDF 1

Products specifications

Nominal diameter (d₁)	5 mm
Length (l₁)	16 mm
Min./max. grip range	10.0-12.0 mm
Head diameter (d_k)	14 mm
Head height (k₁)	1.8 mm
Drill hole diameter	5.1 mm
Shear-fracture load	2150 N
Tensile fracture load	3100 N
Material of the mandrel	Stainless steel A2
Material of the sleeve	Aluminium
Surface of the mandrel	Plain
Surface of the sleeve	Plain
RoHS-compliant	Yes
Product weight (per item)	3.700 g
