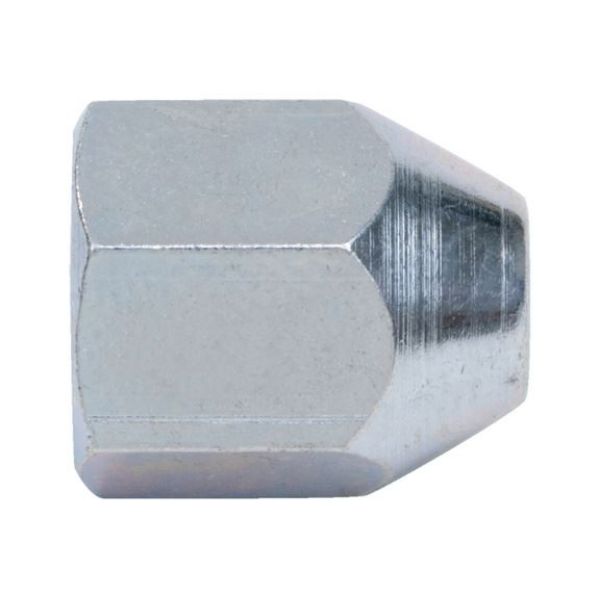

Brake pipe nipple, type H

Article No. 0889507

Brake line nipple, type H BRKPIPNPL-E-PIPD4,75-WS14-(3/8IN-24UNF)

€0.81 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

Products specifications

Suitable for pipe external diameter	4.75 mm
Thread type x nominal diameter x pitch	UNF3/8 x 0.375
Thread type	UNF
Nominal diameter (d1)	3/8 in
Pitch	0.375 in
Internal diameter (D2)	5 mm
Width across flats (s)	14 mm
Length (l)	17.5 mm
DIN flange	E
Material	Steel
Surface	Galvanised
Material designation	9 SMnPb 28 K
DIN	1651
Suitable for vehicle manufacturer	Austin<br>Citroen<br>Fiat<br>Morri<br>Peugeot<br>Saab<br>Vauxhall<br>Volvo

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3

Products specifications

Suitable for pipe external diameter	4.75 mm
Thread type x nominal diameter x pitch	UNF3/8 x 0.375
Thread type	UNF
Nominal diameter (d1)	3/8 in
Pitch	0.375 in
Internal diameter (D2)	5 mm
Width across flats (s)	14 mm
Length (l)	17.5 mm
DIN flange	E
Material	Steel
Surface	Galvanised
Material designation	9 SMnPb 28 K
DIN	1651
Suitable for vehicle manufacturer	Austin<br>Citroen<br>Fiat<br>Morri<br>Peugeot<br>Saab<br>Vauxhall<br>Volvo
