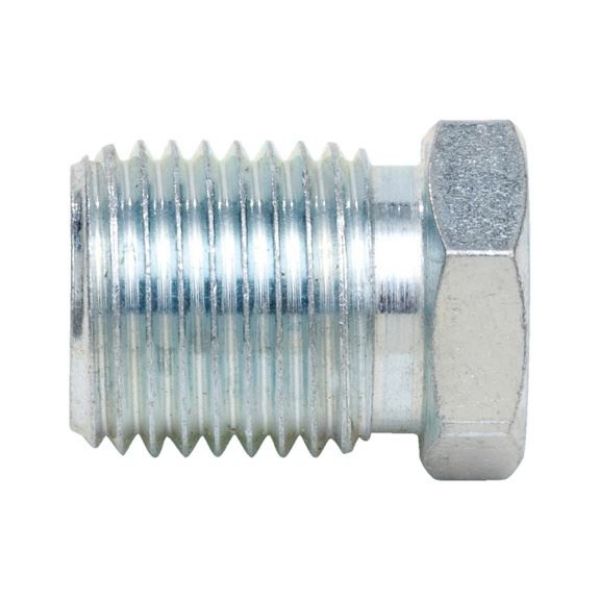

Brake pipe nipple, type PF

Article No. 0889511

Brake line nipple, type PF BRKPIPNPL-E-PIPD4,75-WS13-(1/2IN-20UNF)

€1.44 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

Products specifications

Suitable for pipe external diameter	4.75 mm
Thread type x nominal diameter x pitch	UNF1/2 x 0.500
Thread type	UNF
Nominal diameter (d1)	1/2 in
Pitch	0.500 in
Internal diameter (D2)	5 mm
Width across flats (s)	13 mm
Length (l)	18 mm
DIN flange	E
Material	Steel
Surface	Galvanised
Material designation	9 SMnPb 28 K
DIN	1651
Suitable for vehicle manufacturer	Peugeot

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3

Products specifications

Suitable for pipe external diameter	4.75 mm
Thread type x nominal diameter x pitch	UNF1/2 x 0.500
Thread type	UNF
Nominal diameter (d1)	1/2 in
Pitch	0.500 in
Internal diameter (D2)	5 mm
Width across flats (s)	13 mm
Length (l)	18 mm
DIN flange	E
Material	Steel
Surface	Galvanised
Material designation	9 SMnPb 28 K
DIN	1651
Suitable for vehicle manufacturer	Peugeot
