Charger clamp - CHRGCLMP-STEEL-(ZN)-ALLINSU-BLACK-600A

Charger clamp - CHRGCLMP-STEEL-(ZN)-ALLINSU-BLACK-600A

Charger clamp - CHRGCLMP-STEEL-(ZN)-ALLINSU-BLACK-600A

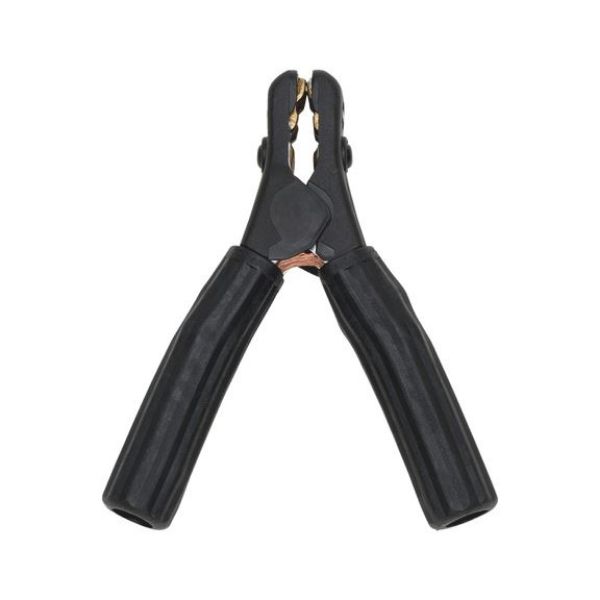

Charger clamp

Article No. 077330561

Charging clamp fully insulated 600 A CHRGCLMP-STEEL-(ZN)-ALLINSU-BLACK-600A

€29.50 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Fully insulated charger clamp, 600 A

Zinc-plated sheet metal; with copper-mesh strip as terminal connection

Each clamp side is reinforced by a zinc-plated brass insert

Cold-resistant insulation (Escorena Ultra EVA)

Cable connection up to 35 mm², with cable crimping shoe:

M6 bolt and serrated locking nut
Strain relief

Weight: approx. 230 g

Specification
Technical Information
Documents

Fully insulated charger clamp, 600 A

Zinc-plated sheet metal; with copper-mesh strip as terminal connection

Each clamp side is reinforced by a zinc-plated brass insert

Cold-resistant insulation (Escorena Ultra EVA)

Cable connection up to 35 mm², with cable crimping shoe:

M6 bolt and serrated locking nut
Strain relief

Weight: approx. 230 g

Products specifications

Max. current	600 A
Colour	Black
Length	160 mm
Opening angle	45 Degree
Width of mouth	35 mm
Material	Sheet steel
Max. wire cross section	35 mm²

Würth Catalogue(2)

Catalogue page as PDF 1

Products specifications

Max. current	600 A
Colour	Black
Length	160 mm
Opening angle	45 Degree
Width of mouth	35 mm
Material	Sheet steel
Max. wire cross section	35 mm²
