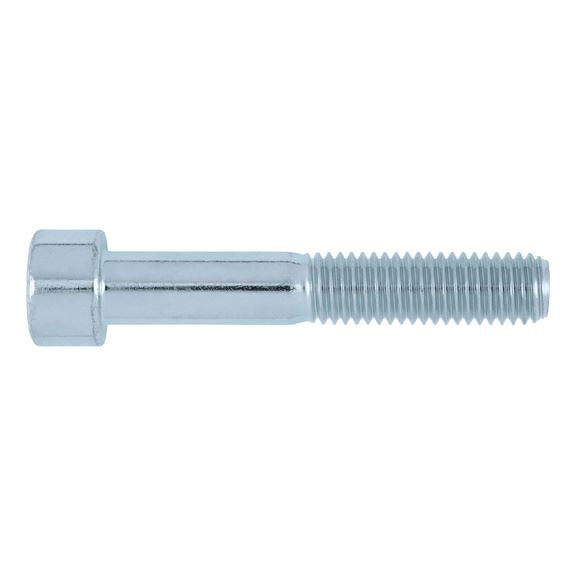

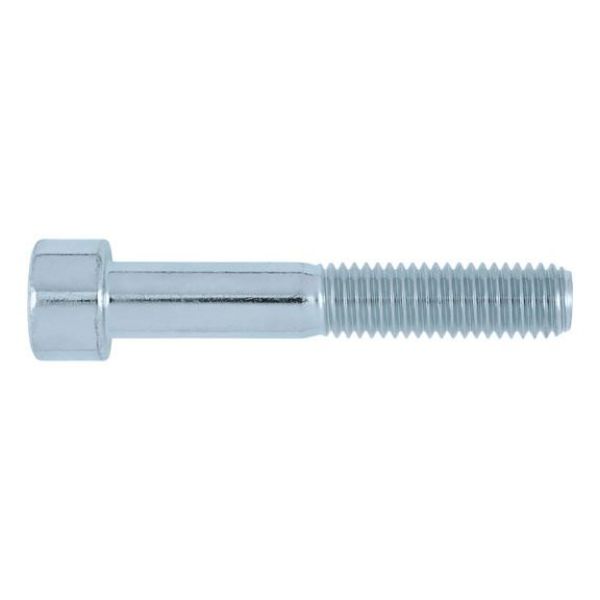

Cheese head screw with hexagon socket

Article No. 0084840

ISO 4762/DIN 912 steel 8.8 galvanised SCR-CYL-ISO4762-8.8-IH6-(A2K)-M8X40

€19.47 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

ISO 4762/DIN 912, steel 8.8, galvanised, blue passivated (A2K)

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

ISO 4762/DIN 912, steel 8.8, galvanised, blue passivated (A2K)

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	40 mm
Head diameter (d_k)	13 mm
Head height (k₁)	8 mm
Standards	ISO 4762
Material	Steel
Property class	8.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	IH6
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	40 mm
Head diameter (d_k)	13 mm
Head height (k₁)	8 mm
Standards	ISO 4762
Material	Steel
Property class	8.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	IH6
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread
Product class	A
