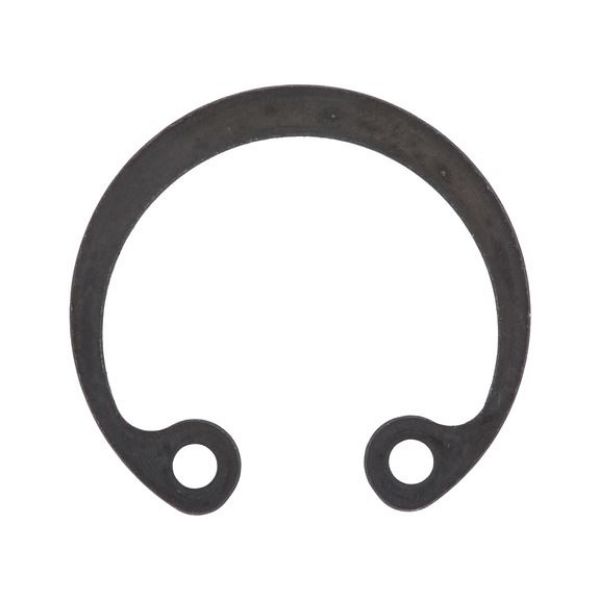

Circlip for drill hole, type J

Article No. 043922

DIN 472 spring steel plain, shape J CRCLIP-BRE-DIN472-J-22X1,0

€15.29 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

DIN 472 for bore holes, spring steel, phosphated and oiled

DIN 472 for bore holes, spring steel, phosphated and oiled

Products specifications

Suitable for holes	22 mm
Suitable for groove diameter	23 mm
Outer diameter (d₁)	23.5 mm
Eye width (a₁)	4.2 mm
Width (b₁)	2.5 mm
Thickness (s₁)	1 mm
Material	Spring steel
Surface	Bare
Form	J
Version	Standard design
