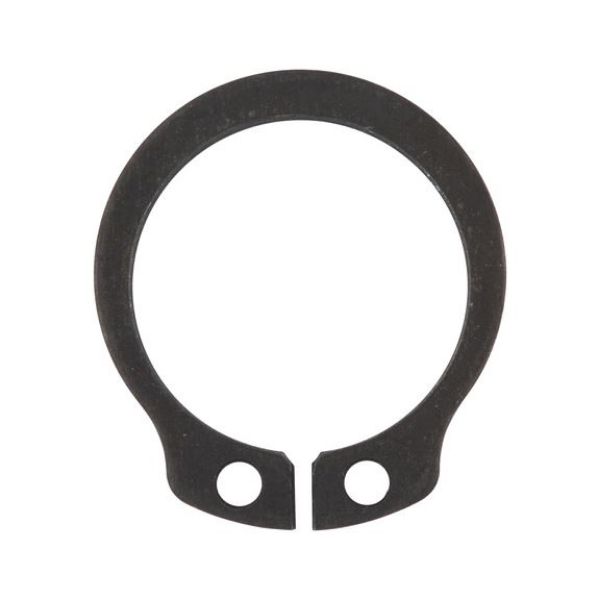

Circlip for shaft, regular design, shape A

Article No. 043836

DIN 471 spring steel phosphated shape A CRCLIP-COR-DIN471-A-36X1,75

€0.59 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

DIN 471, spring steel, phosphated and oiled

For safely limiting freedom of movement — even when there are rotary movements of machine parts on shafts and in bore holes at a predefined level.
High pressure, tensile and impact forces are transferred without torsion.
Transfer of high axial forces from the machine part applying pressure to the groove wall.
Shaft rings can also be used at high speeds.
The rings can be removed quickly and easily using the correct pliers.

DIN 471, spring steel, phosphated and oiled

For safely limiting freedom of movement — even when there are rotary movements of machine parts on shafts and in bore holes at a predefined level.
High pressure, tensile and impact forces are transferred without torsion.
Transfer of high axial forces from the machine part applying pressure to the groove wall.
Shaft rings can also be used at high speeds.
The rings can be removed quickly and easily using the correct pliers.

Products specifications

Suitable for shafts	36 mm
Suitable for groove diameter	34 mm
Internal diameter (d₁)	33.2 mm
Eye width (a₁)	5.6 mm
Width (b₁)	4 mm
Thickness (s₁)	1.75 mm
Material	Spring steel
Surface	Bare
Version	Standard design
Form	A
DIN	471
