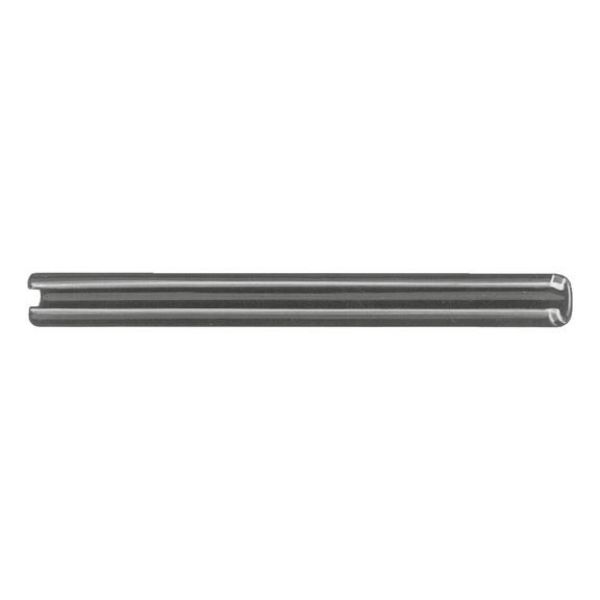

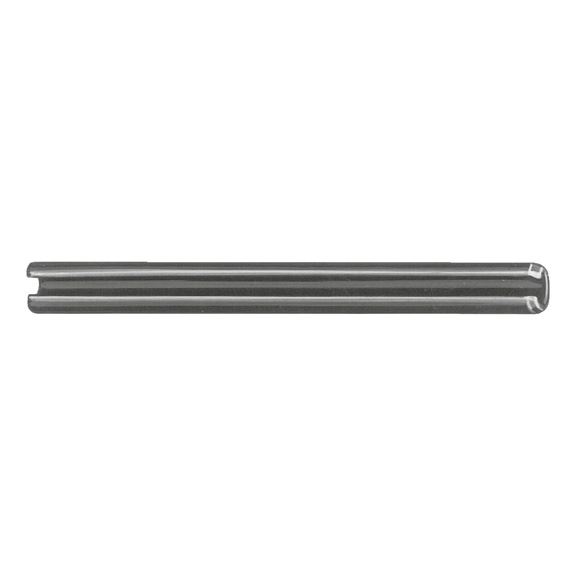

Clamping pin/clamping sleeve - slotted, heavyweight design

Article No. 0475314

ISO 8752 steel plain SPGPIN-ISO8752-3X14

€4.15 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

ISO 8752, spring steel

Securing elements, used in a similar way to grooved pins
For use as sleeves for bolts/screws, predominantly in applications where significant shearing forces occur
Strain on bolts and screws is relieved, allowing smaller sizes to be used
0.2–0.5 mm oversize compared with the nominal diameter guarantees a secure, firm fit
Tapered end makes it easier to insert the part into the hole
Pins can be removed again without causing damage

Notice

The hole diameter is the same as the nominal diameter (tolerance 12 H).

ISO 8752, spring steel

Securing elements, used in a similar way to grooved pins
For use as sleeves for bolts/screws, predominantly in applications where significant shearing forces occur
Strain on bolts and screws is relieved, allowing smaller sizes to be used
0.2–0.5 mm oversize compared with the nominal diameter guarantees a secure, firm fit
Tapered end makes it easier to insert the part into the hole
Pins can be removed again without causing damage

Notice

The hole diameter is the same as the nominal diameter (tolerance 12 H).
