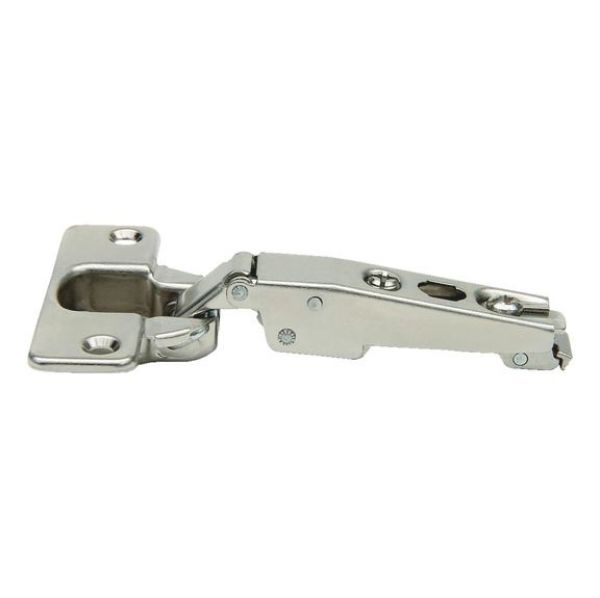

Concealed hinge, Nexis click-on 100

Article No. F015072657

Concealed hinge Nexis 100 Click-on HNGE-NEXCLON-SCRON52/5,5-MID-100DGR GRASS NEXIS CLICK-ON

€1.83 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

With shallow cup depth for thin and profiled doors.

Opening angle 110°

Up to 24 mm door thickness

Soft-close compatible

Notice

CAD calculation with corresponding form

Specified dimensions not binding. Subject to technical changes!

Specification
Technical Information

With shallow cup depth for thin and profiled doors.

Opening angle 110°

Up to 24 mm door thickness

Soft-close compatible

Notice

CAD calculation with corresponding form

Specified dimensions not binding. Subject to technical changes!

Products specifications

Door stop	Centre wall
Automatic	Yes
Type of assembly	Screw-on
Hole drilling	52/5.5 mm
Suitable for max. door thickness	24 mm
Opening angle	100 Degree
Min. hinge pot distance	4 mm
Max. hinge pot distance	6 mm
Material	Zamak
Surface	Nickel-plated

Products specifications

Door stop	Centre wall
Automatic	Yes
Type of assembly	Screw-on
Hole drilling	52/5.5 mm
Suitable for max. door thickness	24 mm
Opening angle	100 Degree
Min. hinge pot distance	4 mm
Max. hinge pot distance	6 mm
Material	Zamak
Surface	Nickel-plated
