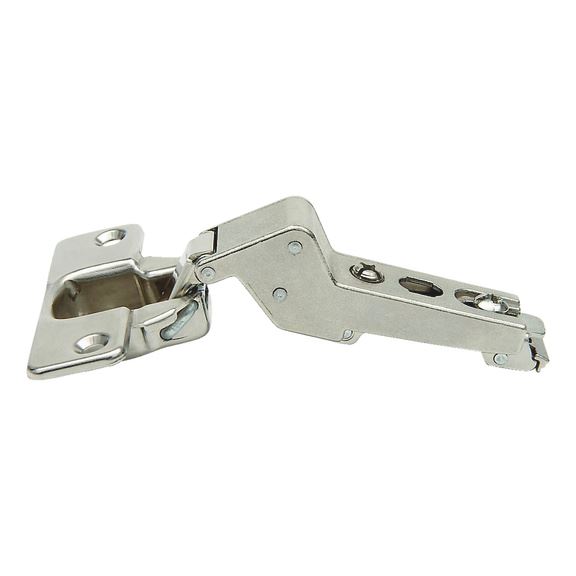

Concealed hinge, Nexis click-on 95/45 A

Article No. F015072675

Concealed hinge Nexis 95/45A Click-on HNGE-NEXCLON-SCRON52/5,5-BEAR-94/45DGR GRASS NEXIS CLICK-ON

€4.32 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

For 45° bevelled units

Compatible with soft-close systems

Specified dimensions not binding. Subject to technical changes!

For 45° bevelled units

Compatible with soft-close systems

Specified dimensions not binding. Subject to technical changes!

Products specifications

Door stop	Supported
Automatic	Yes
Type of assembly	Screw-on
Hole drilling	52/5.5 mm
Suitable for max. door thickness	30 mm
Suitable for angled cabinets	45 Degree
Opening angle	95 Degree
Min. hinge pot distance	4 mm
Max. hinge pot distance	6 mm
Material	Zamak
Surface	Nickel-plated
