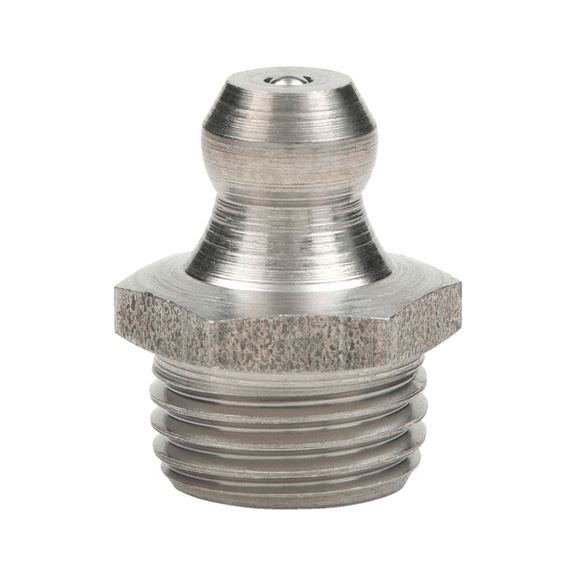

Cone lubricating nipple 180°, straight shape

Article No. 098675101
DIN 71412 stnls steel, straight shape, 180 degrees NPL-DIN71412-H1-WS11-A2-M10X1
€1.95 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
DIN 71412, stainless steel A2
  • Straight shape H1/A 180°
  • With cone-shaped thread
DIN 71412, stainless steel A2
  • Straight shape H1/A 180°
  • With cone-shaped thread
Products specifications
Thread type x nominal diameter x pitch (d1) M10 x 1
Length (l1) 15 mm
Thread length (metric thread) (lg) 5.5 mm
Width across flats (s1) 11 mm
Height (h1) 15 mm
Material Stainless steel A2, 1.4305
Surface Bare
Standards DIN 71412
Form Hexagonal
Pitch 1 mm
RoHS-compliant Yes
Product weight (per item) 5.310 g
Products specifications
Thread type x nominal diameter x pitch (d1) M10 x 1
Length (l1) 15 mm
Thread length (metric thread) (lg) 5.5 mm
Width across flats (s1) 11 mm
Height (h1) 15 mm
Material Stainless steel A2, 1.4305
Surface Bare
Standards DIN 71412
Form Hexagonal
Pitch 1 mm
RoHS-compliant Yes
Product weight (per item) 5.310 g
