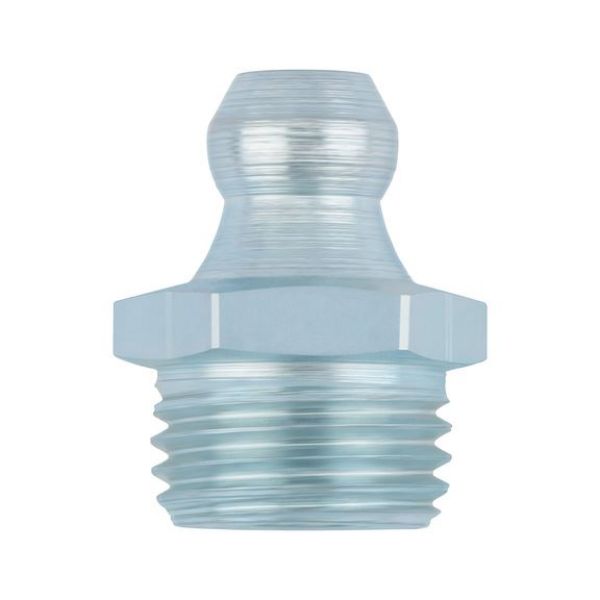

Conical nipple, shape A

Article No. 0986136

DIN 71412 galvanised steel, shape A NPL-DIN71412-H1-(A2K)-M10X1,5

€0.59 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

DIN 71412 A, galvanised steel, blue passivated (A2K), self-locking tapered external thread

DIN 71412 A, galvanised steel, blue passivated (A2K), self-locking tapered external thread

Products specifications

Thread type x nominal diameter x pitch (d₁)	M10 x 1.5
Length (l₁)	16 mm
Thread length (metric thread) (l_g)	5.4 mm
Width across flats (s₁)	11 mm
Material	Steel
Surface	Galvanised
Standards	DIN 71412
Form	A, H1
Pitch	1.5 mm
RoHS-compliant	Yes
Product weight (per item)	5.737 g
