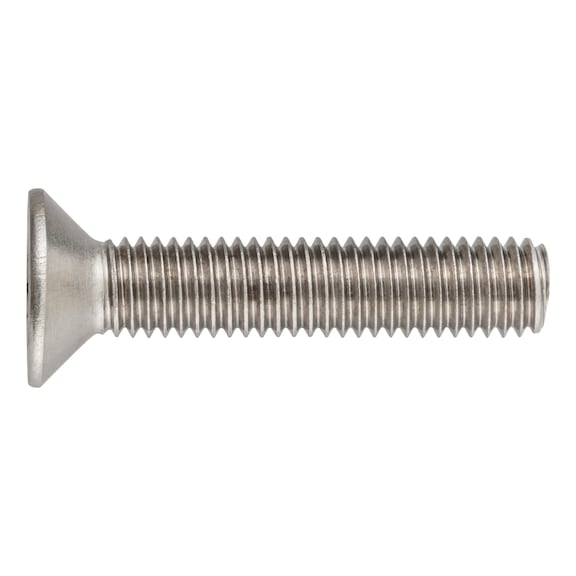

Countersunk head screw with hexagon socket ISO 10642, A2-070 stainless steel, plain

Article No. 0100525

DIN 7991 / ISO 10642 plain A2 stainless steel SCR-CS-ISO10642-A2/070-HS3-M5X25

€0.08 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Due to their head geometry, countersunk head screws have a limited load capacity according to this standard and possibly do not meet tensile or torsional strength requirements.
The actual mechanical properties of the screw are unchanged and comply with ISO 3506-1
Depending on the type, these items are supplied with threading almost up to the head
Countersinks for screw heads in accordance with DIN 7991 and ISO 10642 must comply with DIN 74 shape F

Notice

DIN 7991 has been withdrawn and replaced by ISO 10642. There is some limited similarity (some head heights and head diameters have been changed | nominal Ø M18, M22, M24 are omitted | Stainless steels removed | strength classes 10.9 and 12.9 added).

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 3506-1

Specification
Documents

Due to their head geometry, countersunk head screws have a limited load capacity according to this standard and possibly do not meet tensile or torsional strength requirements.
The actual mechanical properties of the screw are unchanged and comply with ISO 3506-1
Depending on the type, these items are supplied with threading almost up to the head
Countersinks for screw heads in accordance with DIN 7991 and ISO 10642 must comply with DIN 74 shape F

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 3506-1
