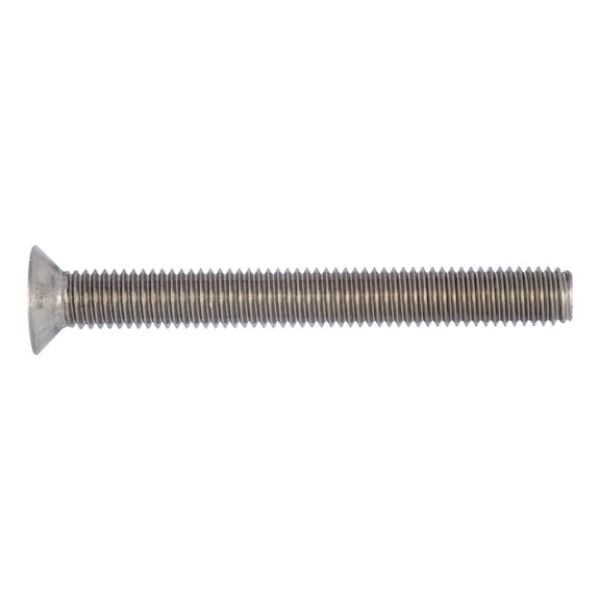

Countersunk head screw with recessed head, H DIN 965, A2 stainless steel, plain

Article No. 0281420

DIN 965 stainless steel A2 plain H SCR-CS-DIN965-A2-H2-M4X20

€0.04 inc. VAT price per 1 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

Notice

DIN 965 has been withdrawn and replaced by ISO 7046 part 1/part 2. There is some limited similarity (some head heights and head diameters have been changed | Thread lengths changed | nominal Ø M1.6 removed | strength class 5.8 and A4-70 omitted | thread lengths changed | recessed head penetration depths changed).

Specification
Technical Information
Documents

Notice

Products specifications

Thread type x nominal diameter (d₁)	M4
Length (l₁)	20 mm
Head diameter (d_k)	7.5 mm
Head height (k₁)	2.2 mm
Standards	DIN 965
Material	Stainless steel A2
Property class	50
Surface	Plain
RoHS-compliant	Yes
Head type	Countersunk head
Drive type	Crosshead
Internal drive	H2
Thread type	Metric thread
Pitch	0.7 mm
Thread form	Standard metric thread
Product class	A

Würth Catalogue (2)

Flip Book

Catalogue page as PDF 1

Products specifications

Thread type x nominal diameter (d₁)	M4
Length (l₁)	20 mm
Head diameter (d_k)	7.5 mm
Head height (k₁)	2.2 mm
Standards	DIN 965
Material	Stainless steel A2
Property class	50
Surface	Plain
RoHS-compliant	Yes
Head type	Countersunk head
Drive type	Crosshead
Internal drive	H2
Thread type	Metric thread
Pitch	0.7 mm
Thread form	Standard metric thread
Product class	A
