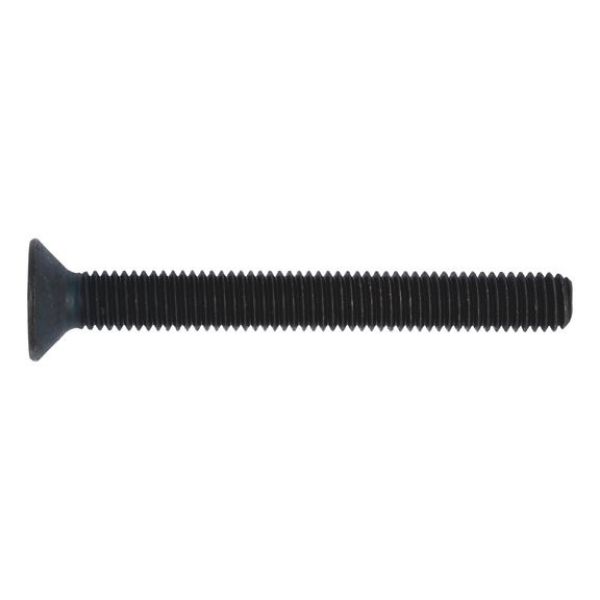

Countersunk screw with hexagon socket head

Article No. 0089660

DIN 7991/ISO 10642 plain steel 010.9 SCR-ISO10642-010.9-IH4-M6X60

€22.47 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

ISO 10642, steel 010.9, plain

Notice

ISO 10642 replaces DIN 7991 | There is some limited similarity (some head heights and head diameters have been changed | nominal Ø M18, M22, M24 are omitted | Stainless steels removed | strength classes 10.9 and 12.9 added).

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Specification
Technical Information
Documents

ISO 10642, steel 010.9, plain

Notice

These screws can only be subjected to limited loads due to their head geometry, see DIN EN ISO 898-1

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	60 mm
Head diameter (d_k)	13.44 mm
Head height (k₁)	3.72 mm
Internal drive (s₁)	IH4
Standards	ISO 10642
Material	Steel
Property class	010.9
Surface	Bare
RoHS-compliant	Yes
Head type	Countersunk head
Drive type	Hexagon socket
Thread type	Metric thread
Pitch	1 mm
Thread format	Standard metric thread
Product class	A
