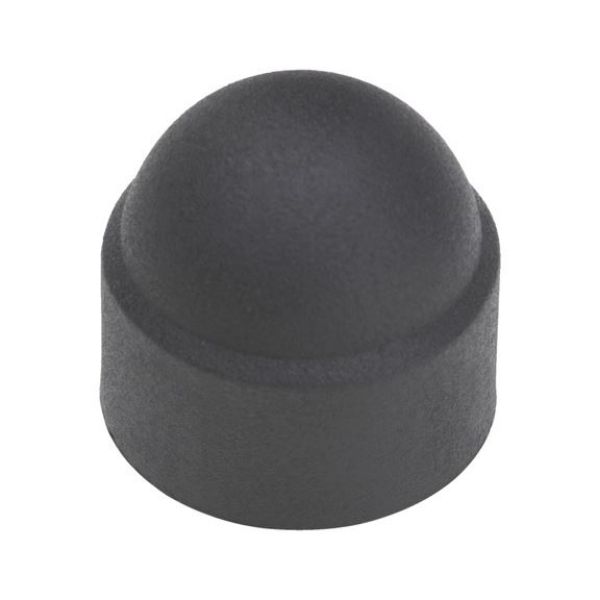

Cover cap for hexagonal bolts and nuts

Article No. 0590010

Plastic cover cap for hexagon head CAP-PLA-(F.SCR-HEX)-BLACK-WS17-M10

€16.52 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

For hexagonal screws/nuts (according to DIN or ISO widths across flats)

For hexagonal screws/nuts (according to DIN or ISO widths across flats)

Products specifications

Outer diameter (d₁)	20.5 mm
Suitable for width across flats (s₁)	17 mm
Height (h₁)	19.3 mm
Suitable for screw (s₁)	M10
Material	PE - Polyethylene
Colour	Jet black RAL 9005
RoHS-compliant	Yes
Suitable for	Hexagon bolts and nuts
Min./max. temperature resistance	-50 to 60 °C

Würth Catalogue(2)

Catalogue page as PDF 1

Datasheets(1)

CAD Data (available after login)

Products specifications

Outer diameter (d₁)	20.5 mm
Suitable for width across flats (s₁)	17 mm
Height (h₁)	19.3 mm
Suitable for screw (s₁)	M10
Material	PE - Polyethylene
Colour	Jet black RAL 9005
RoHS-compliant	Yes
Suitable for	Hexagon bolts and nuts
Min./max. temperature resistance	-50 to 60 °C
