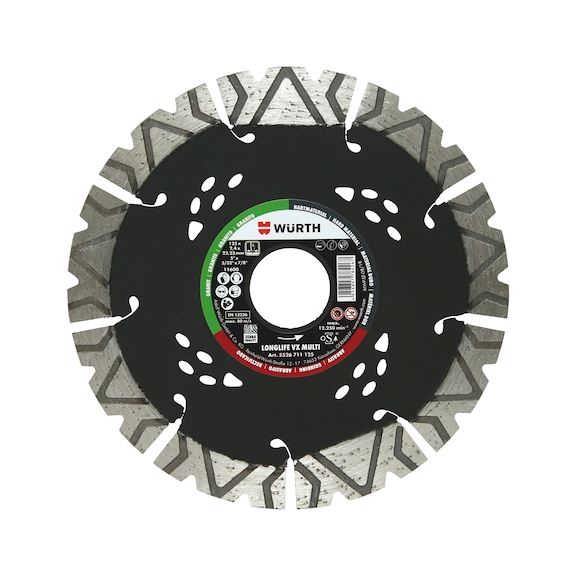

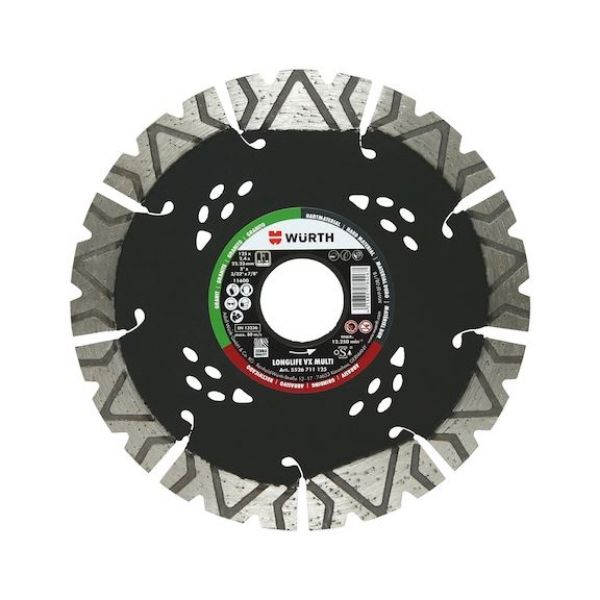

Diamond cutting disc Multi Longlife VX

Article No. 5526711125

Diamond cutting disc multi longlife VX CUTDISC-DIA-LL-VX-MULTI-BR22,23-D125MM ZEBRA

€67.84 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Diamond cutting discs are equally suitable for hard and soft materials in building construction, civil engineering and all related trades working with comparable materials. Very economical thanks to an extremely long service life.

Special segment shape and connection for

Extremely long service life
Very high cutting speed
Much more versatile in use

Protection against undercuts especially in particularly abrasive materials

Due to specially arranged protective segments on disc diameters 115 to 150 mm

Optimised dust removal and cooling

The specially designed, X-structure segments feed in cooling air and transport the dust out of the cut. Special cooling openings with an arrow arrangement serve as additional cooling and as a captive running direction indicator

Smoother running and more pleasant working conditions

The special, innovative slot geometry reduces uncontrolled vibrations and unpleasant noises while running

Notice

Diamond cutting discs become dull at excessively high speeds and wear too rapidly at insufficient circumferential speeds
If the ease of cutting decreases (indicated by heavy sparking), resharpen the disc in abrasive material, e.g. sandstone, with several cuts
Separate larger workpiece cross-sections in several sections (swing cut)
Work without pressure — the weight of the machine is sufficient. Increased pressure causes increased wear
Diamond cutting discs are designed for straight cutting. Cutting curves deforms the blade and results in core cracks and segment tear-offs — risk of injury!
Although the tool is safe, always wear safety goggles and clothing while working
Observe the information on the label (max. speed), restrictions of use and safety instructions
The direction arrow on the disc must match the machine's direction of rotation
Must not be used for lateral grinding
Use the appropriate protective hood
Clamping must be performed only by a trained specialist (do not use force, use clean clamping flanges of the same size, perform a test run)
If grinding tools are clamped or used incorrectly or are damaged, they represent a danger and may cause serious injury

Specification
Application
Technical Information
Documents

Special segment shape and connection for

Extremely long service life
Very high cutting speed
Much more versatile in use

Protection against undercuts especially in particularly abrasive materials

Due to specially arranged protective segments on disc diameters 115 to 150 mm

Optimised dust removal and cooling

Smoother running and more pleasant working conditions

The special, innovative slot geometry reduces uncontrolled vibrations and unpleasant noises while running

Notice

Diamond cutting discs become dull at excessively high speeds and wear too rapidly at insufficient circumferential speeds
If the ease of cutting decreases (indicated by heavy sparking), resharpen the disc in abrasive material, e.g. sandstone, with several cuts
Separate larger workpiece cross-sections in several sections (swing cut)
Work without pressure — the weight of the machine is sufficient. Increased pressure causes increased wear
Diamond cutting discs are designed for straight cutting. Cutting curves deforms the blade and results in core cracks and segment tear-offs — risk of injury!
Although the tool is safe, always wear safety goggles and clothing while working
Observe the information on the label (max. speed), restrictions of use and safety instructions
The direction arrow on the disc must match the machine's direction of rotation
Must not be used for lateral grinding
Use the appropriate protective hood
Clamping must be performed only by a trained specialist (do not use force, use clean clamping flanges of the same size, perform a test run)
If grinding tools are clamped or used incorrectly or are damaged, they represent a danger and may cause serious injury

Application area

∅115 to 150 mm optimised for use in masonry slot cutting

For dry and wet cutting

Particularly suitable for concrete, reinforced concrete (up to 25 mm), exposed aggregate concrete, abrasive concrete, soft/hard sand-lime brick, granite, clinker bricks, pumice stone, mortar/plaster

Products specifications

Versatility (points system)	3 of 4 points
Service life (points system)	4 of 4 points
Cutting speed (point system)	3 of 4 points
Cut quality (point system)	2 of 4 points
Diameter (Ø)	125 mm
Drill hole	22.23 mm
Segment height	12 mm
Segment thickness	2.4 mm
Number of segments	9 PCS
Segment connection	Laser
Max. rotation speed	12250 rpm
Max. circumferential speed	80 m/s

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Products specifications

Versatility (points system)	3 of 4 points
Service life (points system)	4 of 4 points
Cutting speed (point system)	3 of 4 points
Cut quality (point system)	2 of 4 points
Diameter (Ø)	125 mm
Drill hole	22.23 mm
Segment height	12 mm
Segment thickness	2.4 mm
Number of segments	9 PCS
Segment connection	Laser
Max. rotation speed	12250 rpm
Max. circumferential speed	80 m/s
