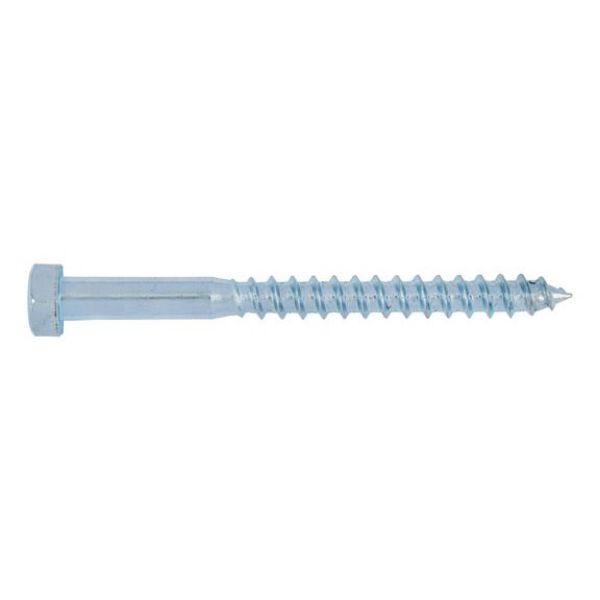

DIN 571 wood screw, blue coated Hexagon head

Article No. 01921250

DIN 571, galvanized steel SCR-HEX-DIN571-WO-WS19-(A2K)-12X50

€0.35 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 571, blue galvanized steel

For secure wood connections
Hexagon head for improved application of force when installing screws
The wood screw forms its nut thread instead of cutting.
A core hole must be pre-drilled depending on the diameter and type of wood (hardwood)

Notice

Hexagonal wood screws and plastic mushroom seals are used almost exclusively for securing corrugated Eternit sheets to wooden trusses.

Specification
Application
Technical Information

DIN 571, blue galvanized steel

For secure wood connections
Hexagon head for improved application of force when installing screws
The wood screw forms its nut thread instead of cutting.
A core hole must be pre-drilled depending on the diameter and type of wood (hardwood)

Notice

Hexagonal wood screws and plastic mushroom seals are used almost exclusively for securing corrugated Eternit sheets to wooden trusses.

Application area

In timber construction work, especially when building prefabricated terraced houses, equipment halls, for trade-fair construction, boat building, vehicle construction etc.

Products specifications

Nominal diameter (d)	12 mm
Length (l)	50 mm
Head height (k)	8 mm
External drive (s₁)	WS19
Material	Steel
Surface	Galvanised
Thread type	Wood screw thread
RoHS-compliant	Yes

Products specifications

Nominal diameter (d)	12 mm
Length (l)	50 mm
Head height (k)	8 mm
External drive (s₁)	WS19
Material	Steel
Surface	Galvanised
Thread type	Wood screw thread
RoHS-compliant	Yes
