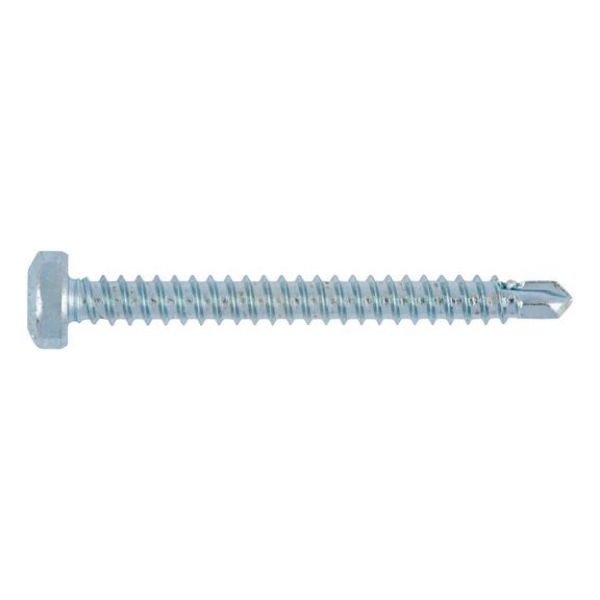

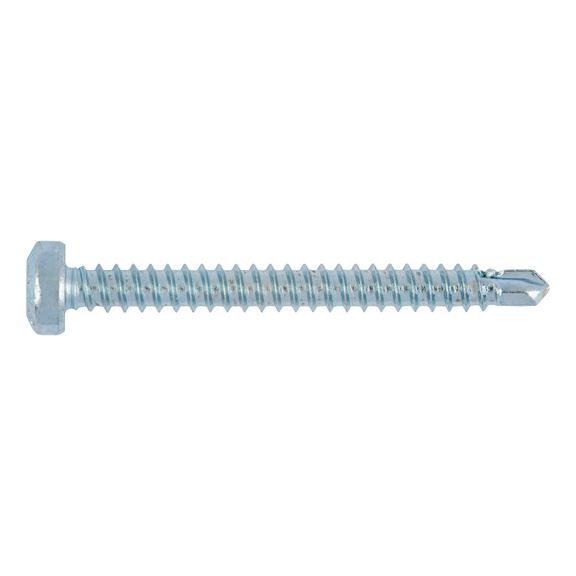

Drilling screw, flat head with AW drive pias®

Article No. 02064216

pias steel galvanised flat head AW SCR-DBIT-PANHD-AW20-(A3K)-4,2X16 ZEBRA PIAS

€7.08 inc. VAT price per 100 PCS

Available on Order
Price may vary

Packaging Unit *

Qty:

+ -

Galvanised steel, blue passivated (A3K), with AW drive

Drilling, threading, screwing-in — all in one step

Therefore considerably reduced time and effort

Precise bore diameter in each screw connection

Minimises thread tolerance
Always an optimal connection

Prevents installation errors

AW drive system:

Enhanced torque transmission
Longer service life
Optimum centring
Better mounting output thanks to fatigue-free screwing-in; the required contact pressure for transmission of the torques is considerably lower
Largest possible contact surface of bit in screw drive
Even force distribution prevents damage to the surface-protection coating and therefore ensures better resistance to corrosion

Included: 1 bit

Notice

Contact pressure during use approx. 100 N, screw in with depth stop if necessary.

Proof of Performance

4.2 mm and 4.8 mm diameter:

General construction permit Z-14.1-4

European Technical Approval ETA-10/0184

Galvanized drilling screws may only be used where dampness is not to be expected. For fasteners with a construction permit, the permit, and in particular Part 2 "Special regulations", must always be observed.

Specification
Technical Information
Documents

Galvanised steel, blue passivated (A3K), with AW drive

Drilling, threading, screwing-in — all in one step

Therefore considerably reduced time and effort

Precise bore diameter in each screw connection

Minimises thread tolerance
Always an optimal connection

Prevents installation errors

AW drive system:

Enhanced torque transmission
Longer service life
Optimum centring
Better mounting output thanks to fatigue-free screwing-in; the required contact pressure for transmission of the torques is considerably lower
Largest possible contact surface of bit in screw drive
Even force distribution prevents damage to the surface-protection coating and therefore ensures better resistance to corrosion

Included: 1 bit

Notice

Contact pressure during use approx. 100 N, screw in with depth stop if necessary.

Proof of Performance

4.2 mm and 4.8 mm diameter:

General construction permit Z-14.1-4

European Technical Approval ETA-10/0184

Products specifications

Material	Steel
Surface	Galvanised
Nominal diameter (d₁)	4.2 mm
Length (l₁)	16 mm
Head diameter (d_k)	8 mm
Head height (k₁)	3.45 mm
Drill tip length (l_p)	3.7 mm
Other standard	Company standard
Internal drive	AW20
Head type	Flat head
Thread type	Self-tapping screw thread
For min. substructure thickness	1.5 mm
Max. material thickness to be drilled through (metal)	3.5 mm
Max. attachment thickness	9 mm
Min./max. recommended installation speed (idling)	1200-1800 U/min(rpm)
RoHS-compliant	Yes
