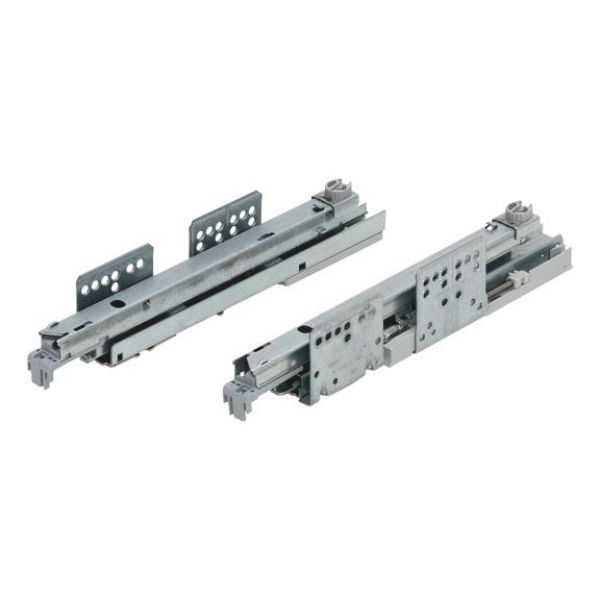

Full extension DWD XP Tipmatic Plus

Article No. F091075468
Full extension DWD XP Tipmatic Plus XXX GRASS DWD-XP
€74.76 inc. VAT price per 1 PCS
Available on Order
Price may vary
*
+ -
Mechanical opening system activates by tapping lightly anywhere on the entire front panel.

Optimal access to stored goods

Thanks to full extraction of drawer

Secure closing

Thanks to catch system

Precision adjustment of front gap (+2/–1 mm)

Thanks to depth adjustment at either side

No need to modify drawers

Integrated unhinging and transport guard

Notice

Activation across the entire front necessitates a minimum front gap of 4 mm, with a unit width of up to 1200 mm and a front height of up to 300 mm. Fronts higher than 300 mm necessitate a larger front gap.

Dimensions not binding. Subject to technical changes!

Mechanical opening system activates by tapping lightly anywhere on the entire front panel.

Optimal access to stored goods

Thanks to full extraction of drawer

Secure closing

Thanks to catch system

Precision adjustment of front gap (+2/–1 mm)

Thanks to depth adjustment at either side

No need to modify drawers

Integrated unhinging and transport guard

Notice

Activation across the entire front necessitates a minimum front gap of 4 mm, with a unit width of up to 1200 mm and a front height of up to 300 mm. Fronts higher than 300 mm necessitate a larger front gap.

Dimensions not binding. Subject to technical changes!

Instructions

We recommend the following work steps:


  • 1. Pre-drill holes for guide

  • 2. Position drilling jig for Tipmatic Plus and furnish drill hole for Tipmatic Plus latch mechanism

  • 3. Attach guide and latch mechanism
Products specifications
Nominal length 500 mm
Load capacity 40 kg
Closing system Tipmatic
Material Steel
Surface Galvanised
