Full shelf pull-out 90° VS SUB Slim

Article No. 0684901681

Full shelf pull-out 90° SUB slim with 2 trays PULOUT-FE-FLRCRBRD-(CR)-90D-SUB-SLIM-150

€253.70 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

Packaging Unit *

For 150 mm wide unit with two shelves

Can be used on left and right; however, stopper can only be on the right
With 2 fixed shelf elements in 2 different versions
With self-closing mechanism and integrated damping in both guides
Tool-free assembly of extensions on the guides

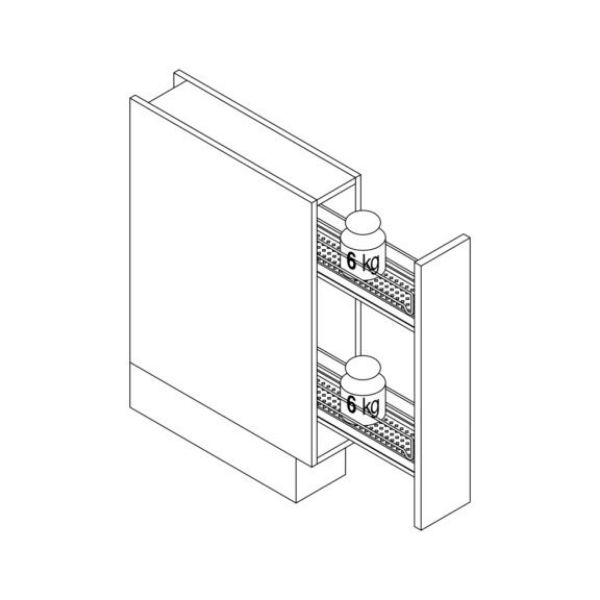

Load-bearing capacity 12 kg, i.e. load capacity up to 6 kg per shelf element

3-D front adjustment allows for convenient and easy adjustment of the front

Height adjustment: ± 3 mm
Side adjustment: ±2 mm
Depth adjustment: ± 2 mm

Notice

Delivery time: approx. 5 working days after receipt of order

Specified dimensions not binding. Subject to technical changes!

For 150 mm wide unit with two shelves

Can be used on left and right; however, stopper can only be on the right
With 2 fixed shelf elements in 2 different versions
With self-closing mechanism and integrated damping in both guides
Tool-free assembly of extensions on the guides

Load-bearing capacity 12 kg, i.e. load capacity up to 6 kg per shelf element

3-D front adjustment allows for convenient and easy adjustment of the front

Height adjustment: ± 3 mm
Side adjustment: ±2 mm
Depth adjustment: ± 2 mm

Notice

Delivery time: approx. 5 working days after receipt of order

Specified dimensions not binding. Subject to technical changes!

Products specifications

Suitable for body width	150 mm
Min. clear width of cabinet	112 mm
Min. clear installation height	530 mm
Min. clear installation depth	495 mm
Load capacity	12 kg
Material	Steel
Surface	Chrome plated
Cabinet width	150 mm

Products specifications

Suitable for body width	150 mm
Min. clear width of cabinet	112 mm
Min. clear installation height	530 mm
Min. clear installation depth	495 mm
Load capacity	12 kg
Material	Steel
Surface	Chrome plated
Cabinet width	150 mm
