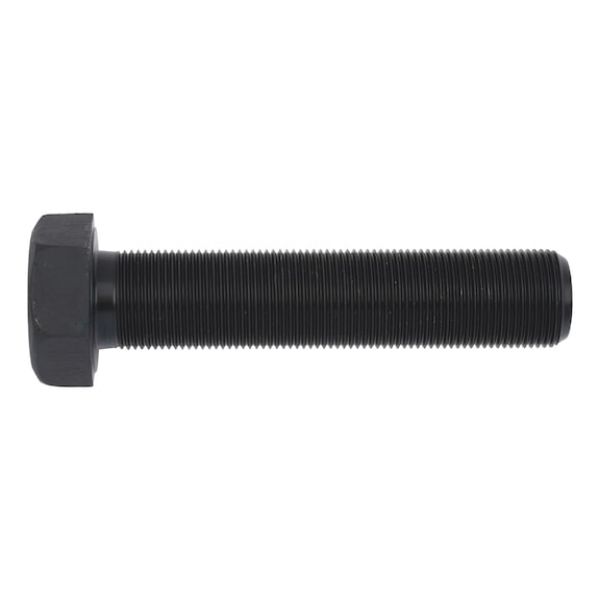

Hexagon bolt, with thread to head and fine thread DIN 961, steel 10.9, plain

Article No. 006761680

DIN 961 steel 10.9, plain, fine thread SCR-HEX-DIN961-10.9-WS24-M16X1,5X80 Art.-no. 006761680 | EAN 4052712426230

€1.67 inc. VAT price per 1 PCS

Packaging Unit *

Qty:

+ -

Notice

DIN 961 has been withdrawn and replaced by ISO 8676. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Specification
Technical Information
Documents

Notice

DIN 961 has been withdrawn and replaced by ISO 8676. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Products specifications

Thread type x nominal diameter x pitch (d₁)	M16 x 1.5
Length (l₁)	80 mm
Head height (k₁)	10 mm
Standards	DIN 961
Material	Steel
Property class	10.9
Surface	Plain
Corrosion protection period	0 h
Head type	Hexagon head
Drive type	Outer hexagon
External drive (s₁)	WS24
Thread type	Metric thread
Pitch	1.5 mm
Thread form	Fine pitch thread
Thread design	Full thread
Product class	A
RoHS-compliant	Yes
