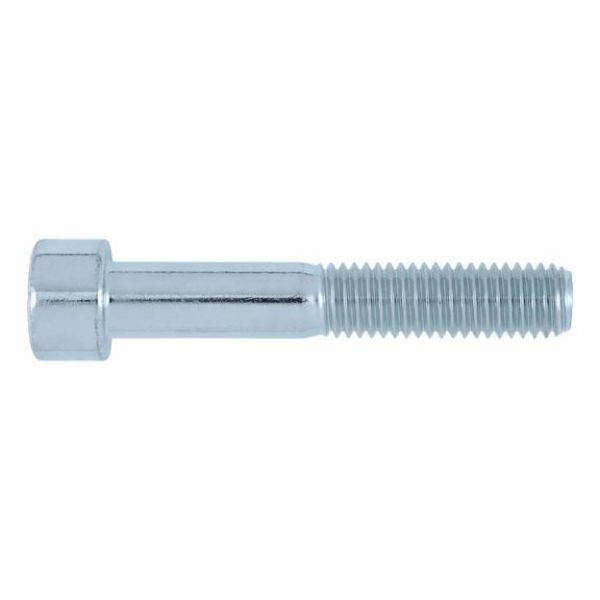

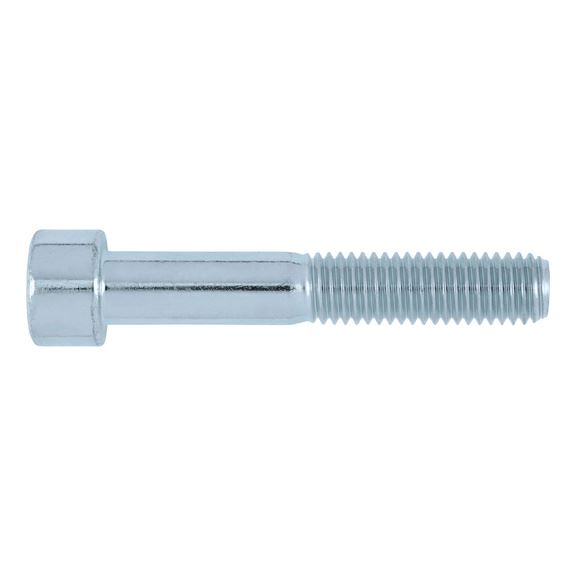

Hexagon Socket Head Cap Screw

Article No. 0084812

ISO 4762/DIN 912 steel 8.8 galvanised SCR-CYL-ISO4762-8.8-IH6-(A2K)-M8X12

€12.98 inc. VAT price per 100 PCS

Available on Order
Price may vary

Qty:

+ -

ISO 4762/DIN 912, steel 8.8, galvanised, blue passivated (A2K)

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

ISO 4762/DIN 912, steel 8.8, galvanised, blue passivated (A2K)

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	12 mm
Head diameter (d_k)	13 mm
Head height (k₁)	8 mm
Standards	ISO 4762
Material	Steel
Property class	8.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	IH6
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread
Product class	A

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	12 mm
Head diameter (d_k)	13 mm
Head height (k₁)	8 mm
Standards	ISO 4762
Material	Steel
Property class	8.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	IH6
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread
Product class	A
