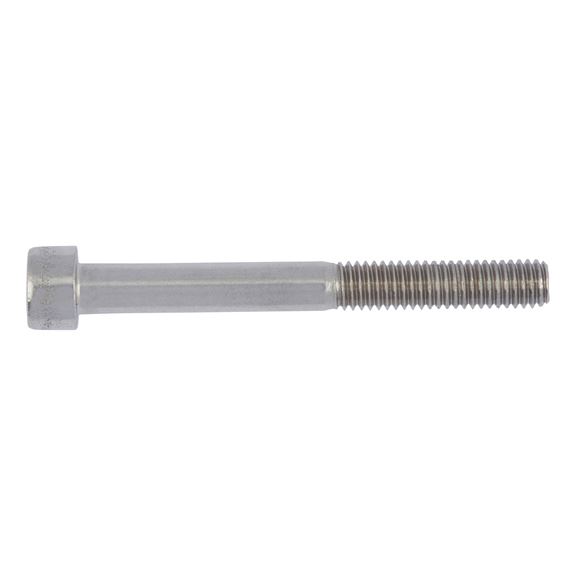

Hexagon Socket Head Cap Screw

Article No. 00941055

ISO 4762/DIN 912 stainless steel A2 plain SCR-CYL-ISO4762-A2/70-IH8-M10X55

€0.76 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

ISO 4762/DIN 912 stainless steel, A2-70, plain

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

ISO 4762/DIN 912 stainless steel, A2-70, plain

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

Products specifications

Thread type x nominal diameter (d₁)	M10
Length (l₁)	55 mm
Head diameter (d_k)	16 mm
Head height (k₁)	10 mm
Standards	ISO 4762
Material	Stainless steel A2
Property class	70
Surface	Bare
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	IH8
Thread type	Metric thread
Pitch	1.5 mm
Thread format	Standard metric thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3 | 4 | 5 | 6

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M10
Length (l₁)	55 mm
Head diameter (d_k)	16 mm
Head height (k₁)	10 mm
Standards	ISO 4762
Material	Stainless steel A2
Property class	70
Surface	Bare
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	IH8
Thread type	Metric thread
Pitch	1.5 mm
Thread format	Standard metric thread
Product class	A
