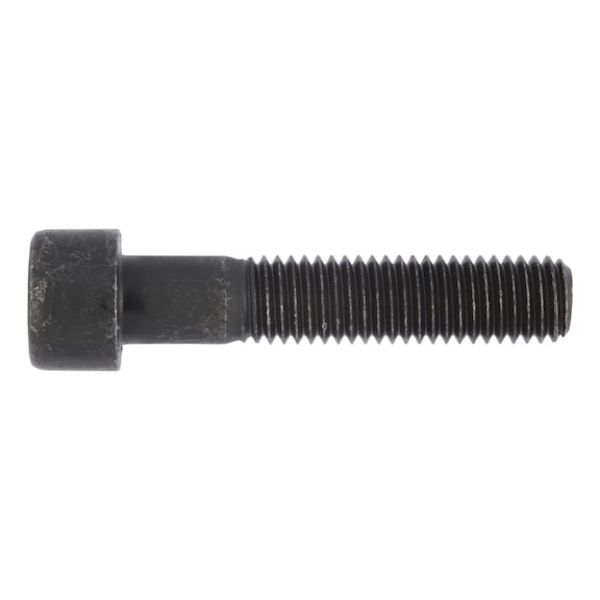

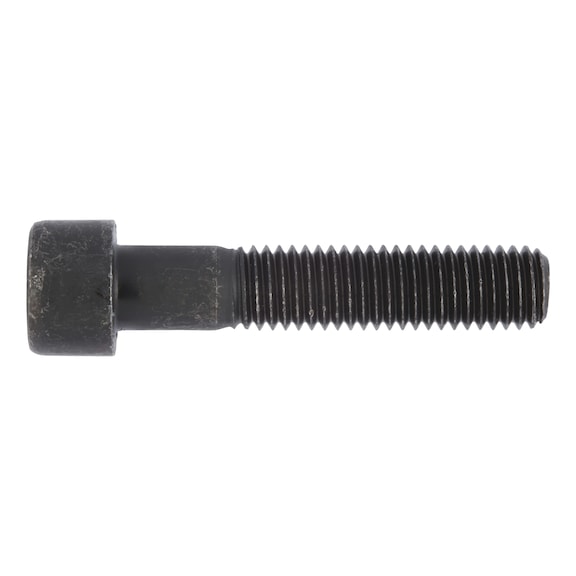

Hexagon Socket Head Cap Screw ISO 4762/DIN 912, steel 8.8, plain

Article No. 00822780

ISO 4762/DIN 912 steel 8.8 plain SCR-CYL-DIN912-8.8-HS19-M27X80 Art.-no. 008227 80 | EAN 4047376124424

€6.29 inc. VAT price per 1 PCS

Qty:

+ -

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

Products specifications

Thread type x nominal diameter (d₁)	M27
Length (l₁)	80 mm
Head diameter (d_k)	66 mm
Head height (k₁)	27 mm
Standards	DIN 912
Material	Steel
Property class	8.8
Surface	Plain
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	HS19
Thread type	Metric thread
Thread form	Standard metric thread
Thread design	Partial thread
Product class	A

Würth Catalogue (2)

Products specifications

Thread type x nominal diameter (d₁)	M27
Length (l₁)	80 mm
Head diameter (d_k)	66 mm
Head height (k₁)	27 mm
Standards	DIN 912
Material	Steel
Property class	8.8
Surface	Plain
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	HS19
Thread type	Metric thread
Thread form	Standard metric thread
Thread design	Partial thread
Product class	A
