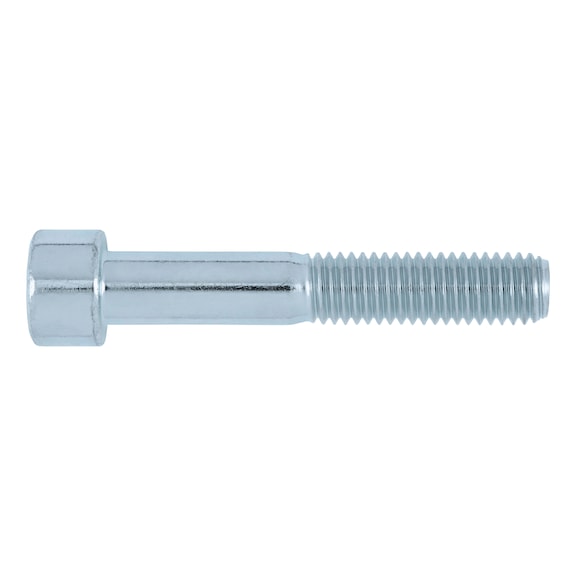

Hexagon Socket Head Cap Screw ISO 4762/DIN 912, steel 8.8, zinc-plated, blue passivated (A2K)

Article No. 0084412

ISO 4762/DIN 912 steel 8.8 zinc plated SCR-CYL-ISO4762-8.8-HS3-(A2K)-M4X12

€4.15 inc. VAT price per 100 PCS

Available on Order
Price may vary

Qty:

+ -

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

Notice

ISO 4762 replaces DIN 912 | There is some similarity | Nominal range changed | Fine thread moved to ISO 12474.

Products specifications

Thread type x nominal diameter (d₁)	M4
Length (l₁)	12 mm
Head diameter (d_k)	7 mm
Head height (k₁)	4 mm
Standards	ISO 4762
Material	Steel
Property class	8.8
Surface	Zinc plated
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	HS3
Thread type	Metric thread
Thread form	Standard metric thread
Product class	A

Products specifications

Thread type x nominal diameter (d₁)	M4
Length (l₁)	12 mm
Head diameter (d_k)	7 mm
Head height (k₁)	4 mm
Standards	ISO 4762
Material	Steel
Property class	8.8
Surface	Zinc plated
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	HS3
Thread type	Metric thread
Thread form	Standard metric thread
Product class	A
