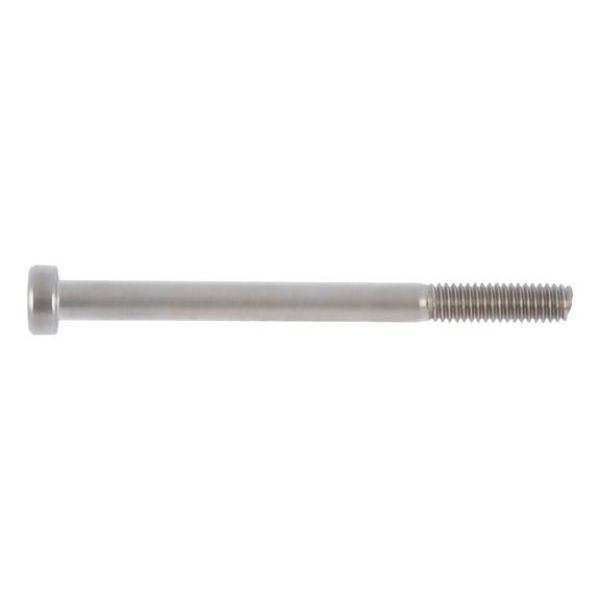

Hexagon Socket Head Cap Screw with centre, with low head

Article No. 0098612

DIN 6912 plain A2 stainless steel SCR-CYL-DIN6912-A2/070-IH5-M6X12

€18.41 inc. VAT price per 100 PCS

AVAILABLE

Qty:

+ -

DIN 6912, stainless steel A2-070, plain

Notice

Due to their head geometry, these screws can only be subjected to limited loads , see DIN EN ISO 3506-1.

DIN 6912, stainless steel A2-070, plain

Notice

Due to their head geometry, these screws can only be subjected to limited loads , see DIN EN ISO 3506-1.

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	12 mm
Head diameter (d_k)	10 mm
Head height (k₁)	4 mm
Standards	DIN 6912
Material	Stainless steel A2
Property class	070
Surface	Bare
RoHS-compliant	Yes
Head type	Socket low head
Drive type	Hexagon socket with keyway
Internal drive (s₁)	IH5
Thread type	Metric thread
Pitch	1 mm
Thread format	Standard metric thread
Product class	A
