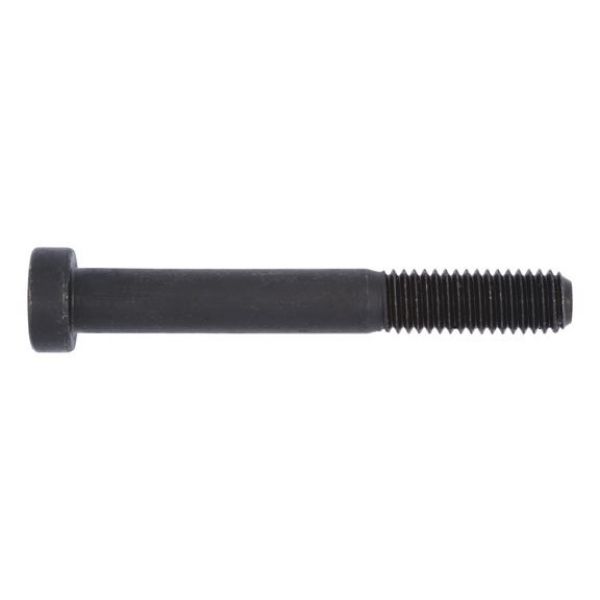

Hexagon Socket Head Cap Screw with centre, with low head

Article No. 0088820

DIN 6912 plain steel 08.8 SCR-CYL-DIN6912-08.8-IH6-M8X20

€22.12 inc. VAT price per 100 PCS

LOW STOCK

Qty:

+ -

DIN 6912, steel 08.8, plain

Notice

Due to their head geometry, these screws can only be subjected to limited loads, see DIN EN ISO 898-1

DIN 6912, steel 08.8, plain

Notice

Due to their head geometry, these screws can only be subjected to limited loads, see DIN EN ISO 898-1

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	20 mm
Head diameter (d_k)	13 mm
Head height (k₁)	5 mm
Standards	DIN 6912
Material	Steel
Property class	08.8
Surface	Bare
RoHS-compliant	Yes
Head type	Socket low head
Drive type	Hexagon socket with keyway
Internal drive (s₁)	IH6
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	20 mm
Head diameter (d_k)	13 mm
Head height (k₁)	5 mm
Standards	DIN 6912
Material	Steel
Property class	08.8
Surface	Bare
RoHS-compliant	Yes
Head type	Socket low head
Drive type	Hexagon socket with keyway
Internal drive (s₁)	IH6
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Standard metric thread
Product class	A
