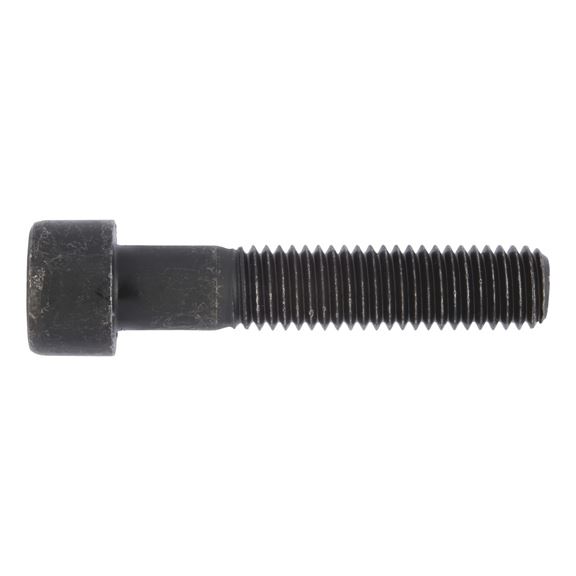

Hexagon Socket Head Cap Screw with metric fine pitch thread

Article No. 008212540

ISO 12474 / DIN 912 steel 8.8, plain, fine thread SCR-ISO12474-8.8-IH10-M12X1,5X40

€42.83 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

ISO 12474/DIN 912, steel 8.8, plain

Notice

DIN 912 has been withdrawn and replaced by ISO 4762 and ISO 12474. There is some similarity (nominal range changed | standard thread defined in ISO 4762, fine thread moved to ISO 12474).

Specification
Technical Information

ISO 12474/DIN 912, steel 8.8, plain

Notice

DIN 912 has been withdrawn and replaced by ISO 4762 and ISO 12474. There is some similarity (nominal range changed | standard thread defined in ISO 4762, fine thread moved to ISO 12474).

Products specifications

Thread type x nominal diameter x pitch (d₁)	M12 x 1.5
Length (l₁)	40 mm
Head diameter (d_k)	18 mm
Head height (k₁)	12 mm
Standards	ISO 12474
Material	Steel
Property class	8.8
Surface	Bare
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	IH10
Thread type	Metric thread
Pitch	1.5 mm
Thread format	Fine pitch thread
Product class	A

Products specifications

Thread type x nominal diameter x pitch (d₁)	M12 x 1.5
Length (l₁)	40 mm
Head diameter (d_k)	18 mm
Head height (k₁)	12 mm
Standards	ISO 12474
Material	Steel
Property class	8.8
Surface	Bare
RoHS-compliant	Yes
Head type	Socket head
Drive type	Hexagon socket
Internal drive (s₁)	IH10
Thread type	Metric thread
Pitch	1.5 mm
Thread format	Fine pitch thread
Product class	A
