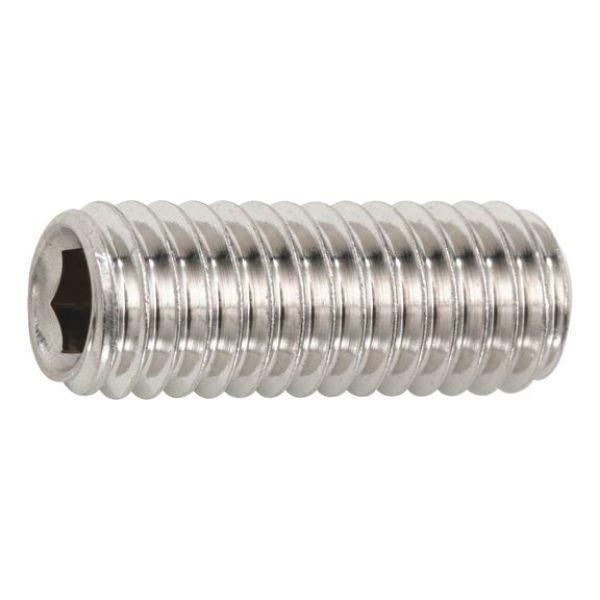

Hexagon socket set screw with truncated cone

Article No. 026166

ISO 4026 stainless steel A2 21H plain SCR-TRNC-ISO4026-A2-21H-IH3-M6X6

€7.79 inc. VAT price per 100 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

ISO 4026, A2 stainless steel, 21H, plain

Notice

Hardness class 21H corresponds to a hardness of 210 HV

Tip:

A2/A4 stainless steel set screws are not specially hardened and may be used for tensile loads.

ISO 4026 replaces DIN 913 | There is some similarity | Nominal diameters for M1.4, M1.8, M14, M18, M22 are removed | Hardness classes for stainless steels introduced.

Specification
Technical Information
Documents

ISO 4026, A2 stainless steel, 21H, plain

Notice

Hardness class 21H corresponds to a hardness of 210 HV

Tip:

A2/A4 stainless steel set screws are not specially hardened and may be used for tensile loads.

ISO 4026 replaces DIN 913 | There is some similarity | Nominal diameters for M1.4, M1.8, M14, M18, M22 are removed | Hardness classes for stainless steels introduced.

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	6 mm
Diameter of flat point (d₂)	4 mm
Standards	ISO 4026
Material	Stainless steel A2
Hardness category	21H
Surface	Bare
RoHS-compliant	Yes
Head type	Without head
Drive type	Hexagon socket
Internal drive (s₁)	IH3
Thread type	Metric thread
Pitch	1 mm
Thread format	Standard metric thread
Thread design	Full thread
Shape of tip	Truncated cone

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3

Flip catalog

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M6
Length (l₁)	6 mm
Diameter of flat point (d₂)	4 mm
Standards	ISO 4026
Material	Stainless steel A2
Hardness category	21H
Surface	Bare
RoHS-compliant	Yes
Head type	Without head
Drive type	Hexagon socket
Internal drive (s₁)	IH3
Thread type	Metric thread
Pitch	1 mm
Thread format	Standard metric thread
Thread design	Full thread
Shape of tip	Truncated cone
