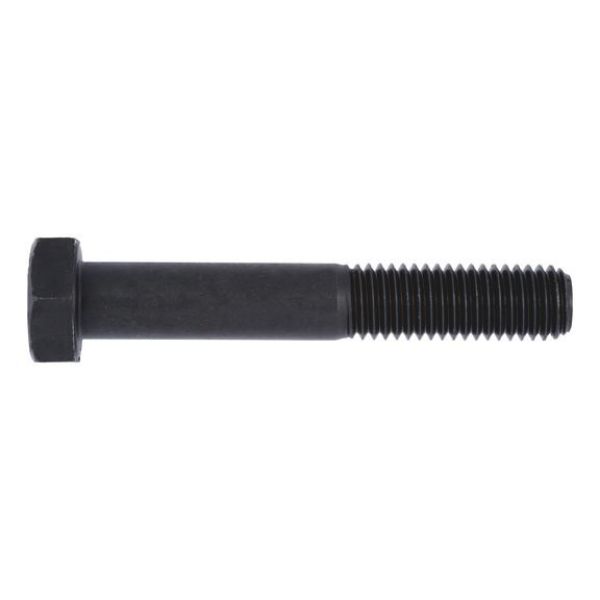

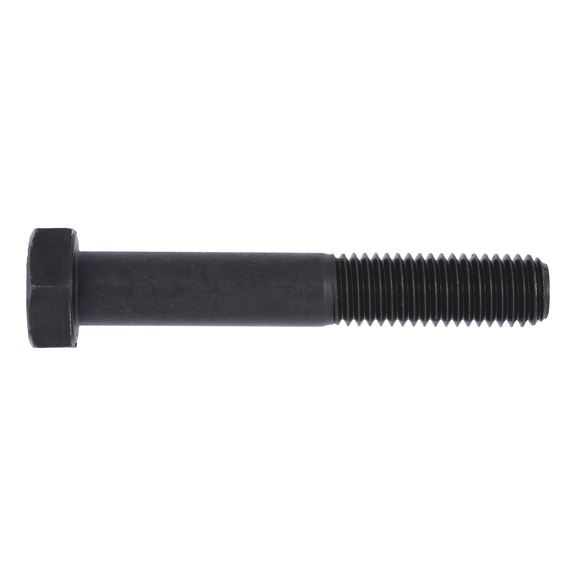

Hexagonal bolt with shank

Article No. 00511680

ISO 4014 plain steel 8.8 SCR-HEX-ISO4014-8.8-WS24-M16X80

€1.18 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

ISO 4014, steel 8.8, plain

Notice

ISO 4014 replaces DIN 931 | There is some similarity | Nominal size extended | Width across flats for M10, M12, M14 and M22 changed.

ISO 4014, steel 8.8, plain

Notice

ISO 4014 replaces DIN 931 | There is some similarity | Nominal size extended | Width across flats for M10, M12, M14 and M22 changed.

Products specifications

Thread type x nominal diameter (d₁)	M16
Length (l₁)	80 mm
Head height (k₁)	10 mm
External drive (s₁)	WS24
Standards	ISO 4014
Material	Steel
Property class	8.8
Surface	Bare
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Partial thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M16
Length (l₁)	80 mm
Head height (k₁)	10 mm
External drive (s₁)	WS24
Standards	ISO 4014
Material	Steel
Property class	8.8
Surface	Bare
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Partial thread
Product class	A
