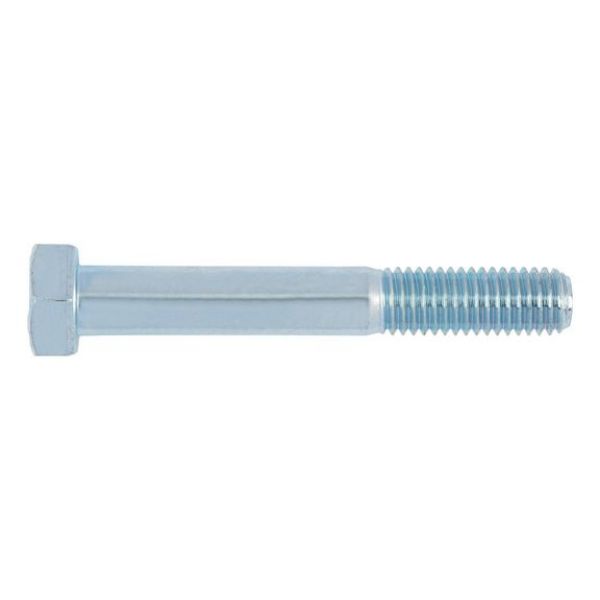

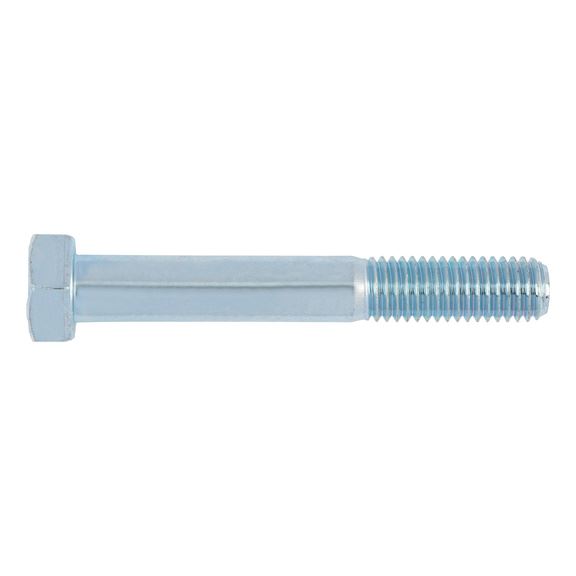

Hexagonal bolt with shank

Article No. 0105020120

ISO 4014 galvanised steel 10.9 SCR-HEX-ISO4014-10.9-WS30-(A2K)-M20X120

€2.43 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

ISO 4014, steel 10.9, galvanised, blue passivated (A2K)

Notice

ISO 4014 replaces DIN 931 | There is some similarity | Nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22.

ISO 4014, steel 10.9, galvanised, blue passivated (A2K)

Notice

ISO 4014 replaces DIN 931 | There is some similarity | Nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22.

Products specifications

Thread type x nominal diameter (d₁)	M20
Length (l₁)	120 mm
Head height (k₁)	12.5 mm
External drive (s₁)	WS30
Standards	ISO 4014
Material	Steel
Property class	10.9
Surface	Galvanised
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Partial thread
Product class	A

Products specifications

Thread type x nominal diameter (d₁)	M20
Length (l₁)	120 mm
Head height (k₁)	12.5 mm
External drive (s₁)	WS30
Standards	ISO 4014
Material	Steel
Property class	10.9
Surface	Galvanised
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Partial thread
Product class	A
