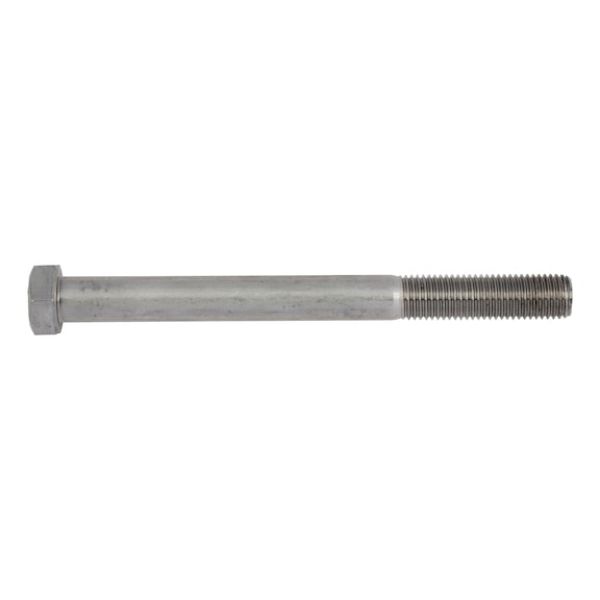

Hexagonal bolt with shank

Article No. 00951065

DIN 931 plain A2 stainless steel SCR-HEX-DIN931-A2/70-WS17-M10X65

€0.66 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 931 plain A2 stainless steel

Notice

DIN 931 has been withdrawn and replaced by ISO 4014. There is some similarity (nominal dimensions extended | Widths across flats changed for M10, M12, M14 and M22).

Specification
Technical Information
Documents

DIN 931 plain A2 stainless steel

Notice

DIN 931 has been withdrawn and replaced by ISO 4014. There is some similarity (nominal dimensions extended | Widths across flats changed for M10, M12, M14 and M22).

Products specifications

Thread type x nominal diameter (d₁)	M10
Length (l₁)	65 mm
Head height (k₁)	7 mm
External drive (s₁)	WS17
Standards	DIN 931
Material	Stainless steel A2
Property class	70
Surface	Plain
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread form	Standard metric thread
Thread design	Partial thread
Product class	A
RoHS-compliant	Yes
