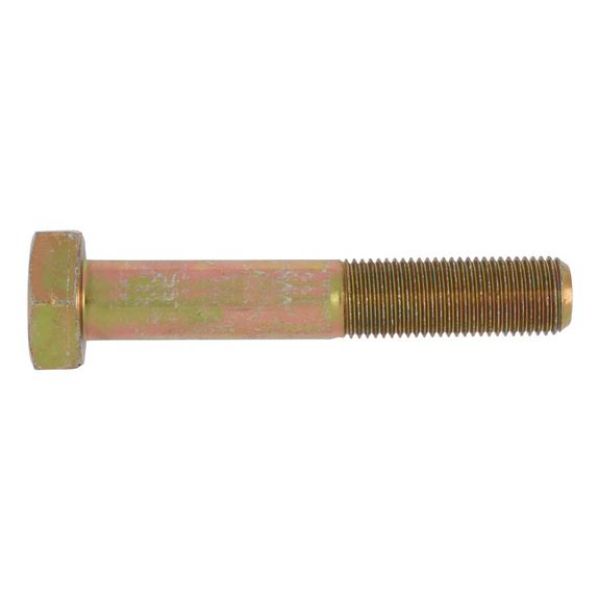

Hexagonal bolt with shank and fine thread

Article No. 00631060

DIN 960 steel 10.9 yellow galvanised fine thread SCR-DIN960-10.9-WS17-(A2C)-M10X1,0X60

€0.63 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 960, steel 10.9, galvanised, yellow chrome plated (A2C)

Due to fine thread

The lower rise ensures more self-locking power compared to a regular threaded bolt
Higher torque
High reliability due to the larger diameter of the screw

Notice

DIN 960 has been withdrawn and replaced by ISO 8765. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Specification
Technical Information
Documents

DIN 960, steel 10.9, galvanised, yellow chrome plated (A2C)

Due to fine thread

The lower rise ensures more self-locking power compared to a regular threaded bolt
Higher torque
High reliability due to the larger diameter of the screw

Notice

DIN 960 has been withdrawn and replaced by ISO 8765. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Products specifications

Thread type x nominal diameter x pitch (d₁)	M10 x 1
Length (l₁)	60 mm
Head height (k₁)	6.4 mm
Standards	DIN 960
Material	Steel
Property class	10.9
Surface	Yellow galvanised
RoHS-compliant	No
Head type	Hexagon head
Drive type	Outer hexagon
External drive (s₁)	WS17
Thread type	Metric thread
Pitch	1 mm
Thread format	Fine pitch thread
Thread length (metric thread)	26 mm
