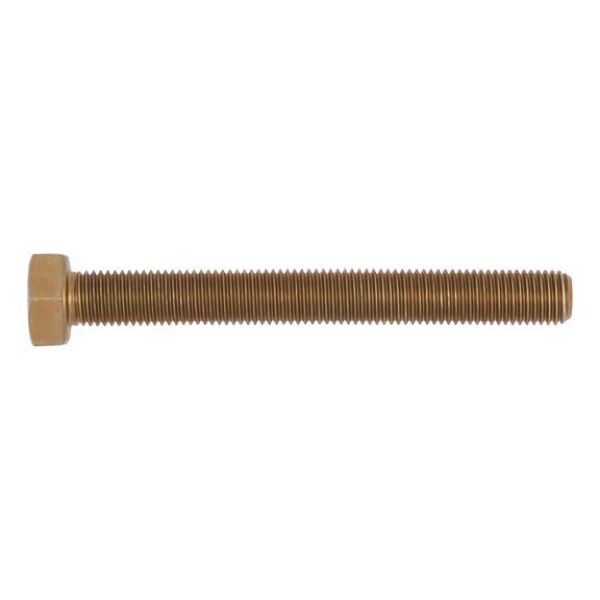

Hexagonal bolt, with thread to head and fine thread

Article No. 00671250

DIN 961 steel 10.9 yellow galvanised fine thread SCR-DIN961-10.9-WS19-(A2C)-M12X1,5X50

€0.71 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 961, steel 10.9, galvanised, yellow chrome plated (A2C)

Due to fine thread:

Increased self-locking.
Greater tightening torque.
High load-bearing capacity.

Notice

DIN 961 has been withdrawn and replaced by ISO 8676. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Specification
Technical Information
Documents

DIN 961, steel 10.9, galvanised, yellow chrome plated (A2C)

Due to fine thread:

Increased self-locking.
Greater tightening torque.
High load-bearing capacity.

Notice

DIN 961 has been withdrawn and replaced by ISO 8676. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Products specifications

Thread type x nominal diameter x pitch (d₁)	M12 x 1.5
Length (l₁)	50 mm
Head height (k₁)	7.5 mm
Standards	DIN 961
Material	Steel
Property class	10.9
Surface	Yellow galvanised
RoHS-compliant	No
Head type	Hexagon head
Drive type	Outer hexagon
External drive (s₁)	WS19
Thread type	Metric thread
Pitch	1.5 mm
Thread format	Fine pitch thread
Thread design	Full thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1

Flip catalog

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter x pitch (d₁)	M12 x 1.5
Length (l₁)	50 mm
Head height (k₁)	7.5 mm
Standards	DIN 961
Material	Steel
Property class	10.9
Surface	Yellow galvanised
RoHS-compliant	No
Head type	Hexagon head
Drive type	Outer hexagon
External drive (s₁)	WS19
Thread type	Metric thread
Pitch	1.5 mm
Thread format	Fine pitch thread
Thread design	Full thread
Product class	A
