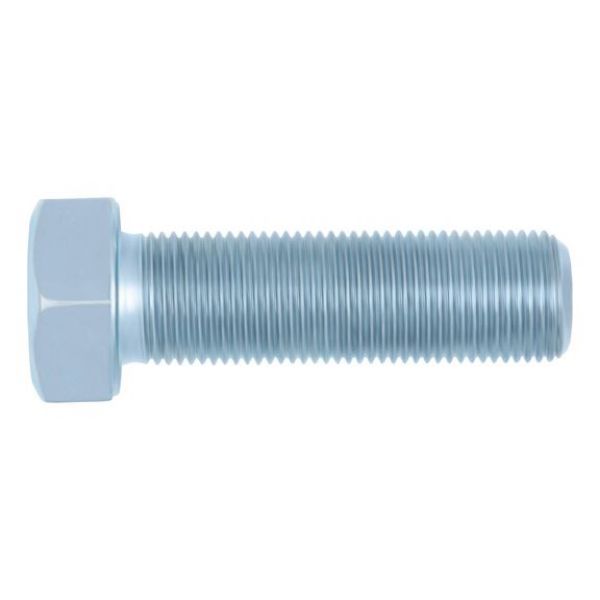

Hexagonal bolt, with thread to head and fine thread

Article No. 006731225

DIN 961 steel 8.8, galvanised, fine thread SCR-DIN961-8.8-WS19-(A2K)-M12X1,5X25

€0.28 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 961, steel 8.8, galvanised, blue passivated (A2K)

Notice

DIN 961 has been withdrawn and replaced by ISO 8676. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Specification
Technical Information

DIN 961, steel 8.8, galvanised, blue passivated (A2K)

Notice

DIN 961 has been withdrawn and replaced by ISO 8676. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Products specifications

Thread type x nominal diameter x pitch (d₁)	M12 x 1.5
Length (l₁)	25 mm
Head height (k₁)	7.5 mm
Standards	DIN 961
Material	Steel
Property class	8.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
External drive (s₁)	WS19
Thread type	Metric thread
Pitch	1.5 mm
Thread format	Fine pitch thread
Thread design	Full thread
Product class	A

Products specifications

Thread type x nominal diameter x pitch (d₁)	M12 x 1.5
Length (l₁)	25 mm
Head height (k₁)	7.5 mm
Standards	DIN 961
Material	Steel
Property class	8.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
External drive (s₁)	WS19
Thread type	Metric thread
Pitch	1.5 mm
Thread format	Fine pitch thread
Thread design	Full thread
Product class	A
