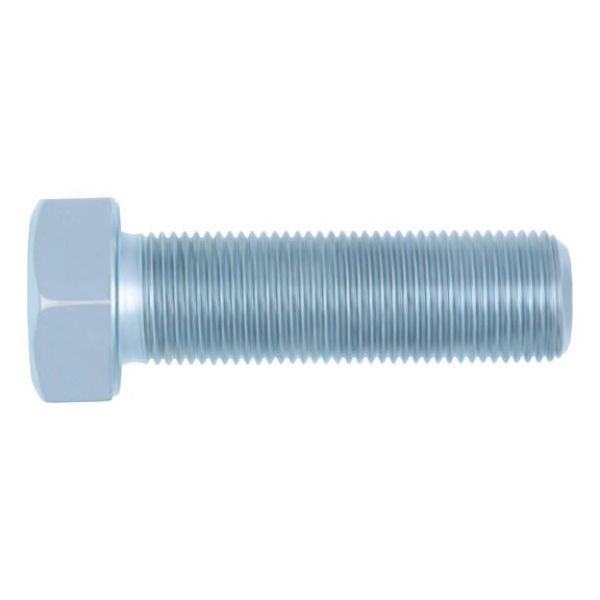

Hexagonal bolt, with thread to head and fine thread

Article No. 418621061

DIN 961 steel 8.8 glv thick-film pass. fine thread SCR-DIN961-8.8-SW17-(VZD)-M10X1,25X60

€0.59 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 961, galvanised steel 8.8, thick-film passivated (VZD)

Connection elements with galvanised chromium (VI)-free zinc thick-film passivation (VZD) offer a future-proof alternative to surfaces containing chromium (VI). The coating consists of a zinc layer with passivation on a chromium (III) basis.

Overview of advantages:

Chromium (VI)-free alternative to A2C or A3C
Thermal capacity up to 120°C
Even coat distribution

Specification
Technical Information
Documents

DIN 961, galvanised steel 8.8, thick-film passivated (VZD)

Overview of advantages:

Chromium (VI)-free alternative to A2C or A3C
Thermal capacity up to 120°C
Even coat distribution

Products specifications

Thread type x nominal diameter x pitch (d₁)	M10 x 1.25
Length (l₁)	60 mm
Head height (k₁)	18.9 mm
Standards	DIN 961
Material	Steel
Property class	8.8
Surface	Zinc plated thick-layer passivation
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
External drive (s₁)	WS17
Thread type	Metric thread
Pitch	1.25 mm
Thread format	Fine pitch thread
Thread design	Full thread
Product class	A
