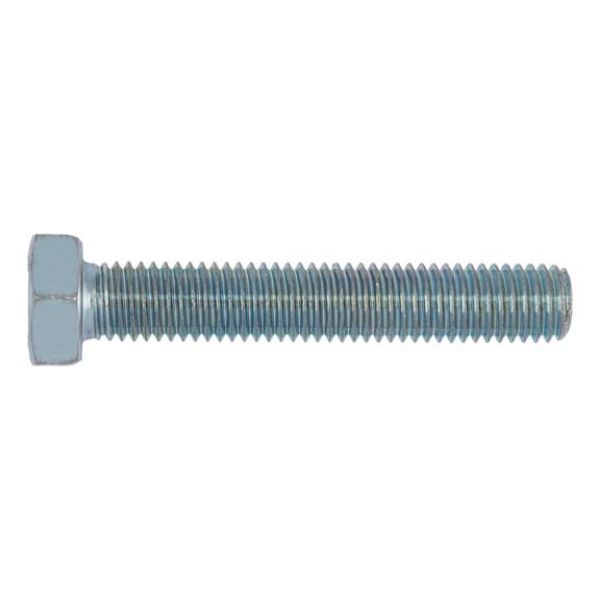

Hexagonal bolt with thread up to the head

Article No. 00571850

ISO 4017 steel 8.8 galvanised SCR-HEX-ISO4017-8.8-WS27-(A2K)-M18X50

€1.12 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

ISO 4017, steel 8.8, galvanised, blue passivated (A2K)

Notice

ISO 4017 replaces DIN 933 | There is some similarity | Nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22.

ISO 4017, steel 8.8, galvanised, blue passivated (A2K)

Notice

ISO 4017 replaces DIN 933 | There is some similarity | Nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22.

Products specifications

Thread type x nominal diameter (d₁)	M18
Length (l₁)	50 mm
Head height (k₁)	11.5 mm
External drive (s₁)	WS27
Standards	ISO 4017
Material	Steel
Property class	8.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Full thread
Product class	A

Würth Catalogue(2)

Catalogue page as PDF 1 | 2 | 3

Datasheets(1)

CAD Data (available after login)

Products specifications

Thread type x nominal diameter (d₁)	M18
Length (l₁)	50 mm
Head height (k₁)	11.5 mm
External drive (s₁)	WS27
Standards	ISO 4017
Material	Steel
Property class	8.8
Surface	Galvanised
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Full thread
Product class	A
