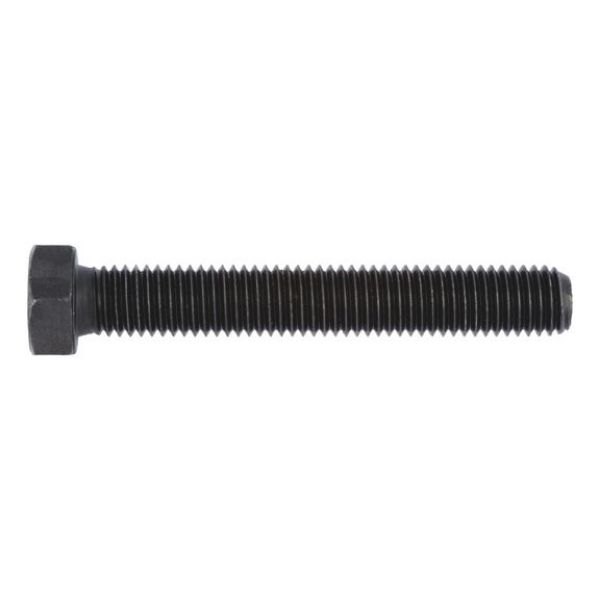

Hexagonal bolt with thread up to the head

Article No. 00568120

ISO 4017 plain steel 10.9 SCR-HEX-ISO4017-10.9-WS13-M8X120

€0.77 inc. VAT price per 1 PCS

Available on Order
Price may vary

Qty:

+ -

ISO 4017, steel 10.9, plain

Notice

ISO 4017 replaces DIN 933 | There is some similarity | Nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22.

ISO 4017, steel 10.9, plain

Notice

ISO 4017 replaces DIN 933 | There is some similarity | Nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22.

Products specifications

Thread type x nominal diameter (d₁)	M8
Length (l₁)	120 mm
Head height (k₁)	5.3 mm
External drive (s₁)	WS13
Standards	ISO 4017
Material	Steel
Property class	10.9
Surface	Bare
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Full thread
Product class	B
