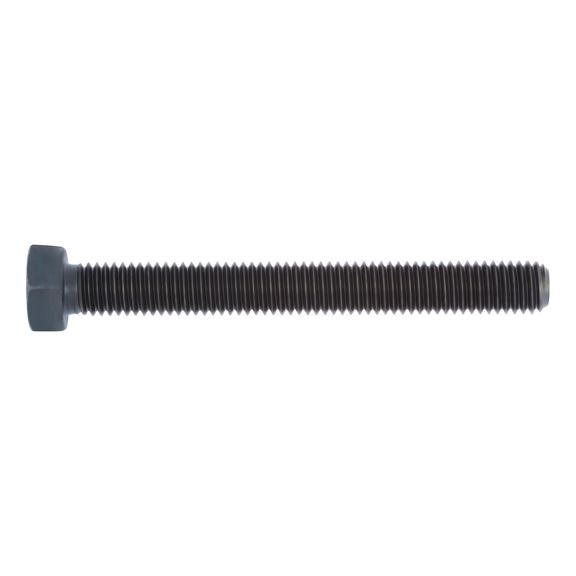

Hexagonal bolt with thread up to the head

Article No. 00611240

DIN 933 plain steel 12.9 SCR-HEX-DIN933-12.9-WS19-M12X40

€0.51 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

DIN 933, steel 12.9, plain

Notice

DIN 933 has been withdrawn and replaced by ISO 4017. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Specification
Technical Information

DIN 933, steel 12.9, plain

Notice

DIN 933 has been withdrawn and replaced by ISO 4017. There is some similarity (nominal dimensions extended | Width across flats changed for M10, M12, M14 and M22).

Products specifications

Thread type x nominal diameter (d₁)	M12
Length (l₁)	40 mm
Head height (k₁)	7.5 mm
External drive (s₁)	WS19
Standards	DIN 933
Material	Steel
Property class	12.9
Surface	Bare
RoHS-compliant	Yes
Head type	Hexagon head
Drive type	Outer hexagon
Thread type	Metric thread
Thread format	Standard metric thread
Thread design	Full thread
Product class	A
