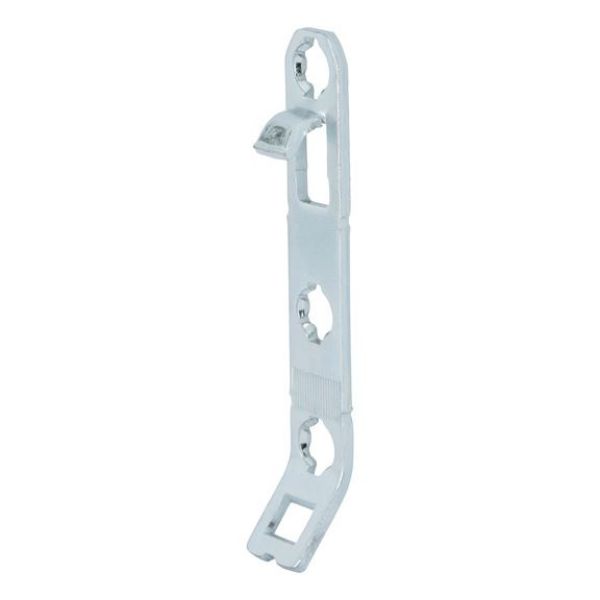

Hinge hook

Article No. F102021855
Hinge hook for Nova Pro Scala H90/122/186 AY-HAK-SCALA-H90-122-186-250 GRASS
€0.47 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
For Nova Pro Scala H90/H122/H186 and Crystal Plus
  • Side adjustment without tools: +/–1.5 mm
  • Can be used on the left- and right-hand side

Specified dimensions not binding. Subject to technical changes!

For Nova Pro Scala H90/H122/H186 and Crystal Plus
  • Side adjustment without tools: +/–1.5 mm
  • Can be used on the left- and right-hand side

Specified dimensions not binding. Subject to technical changes!

Products specifications
Material Steel
Suitable for frame NP Scala H90/122/186/250
Type of assembly Screw-on
Drilling clearance 32/50 mm

Datasheets(1)

CAD Data (available after login)

Certificates/Documents(1)

3D-drawing 1

Products specifications
Material Steel
Suitable for frame NP Scala H90/122/186/250
Type of assembly Screw-on
Drilling clearance 32/50 mm
