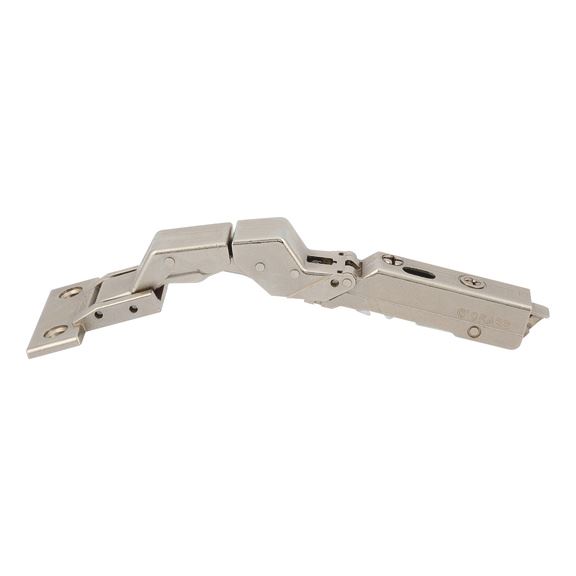

Hinge Tiomos M0 Click-on 125

For door thicknesses from 6 mm

Countersunk head screw M5 x 6 mm (Art. no. 02815 6)

1. Drill hole with a diameter of 4.2 mm for aluminium or 4.5–4.8 mm for HPL and solid surface material.

2. Cut an M5 thread.

3. Mount the hinge and attach with the screws.

For door thicknesses from 10 mm

Euro screw type B, diameter 6.3 x 10 mm (Art. no. 027663010)

1. Drill hole with diameter 5 mm.

2. Mount the hinge and attach with the screws.

For door thicknesses from 8 mm

Countersunk head screw M4 x 8 mm with sleeve M4 x 5.5 mm (Art. no. F072135928)

1. Drill hole with diameter 5 mm. Slightly countersink the edge of the hole.

2. Insert the sleeve and drive in with a hammer.

3. Mount the hinge and attach with the screws.
