Hose clamp A4 - HOSECLMP-A4-DIN3017-W5-W9MM-(12-22MM)

Hose clamp A4 - HOSECLMP-A4-DIN3017-W5-W9MM-(12-22MM)

Hose clamp A4 - HOSECLMP-A4-DIN3017-W5-W9MM-(12-22MM)

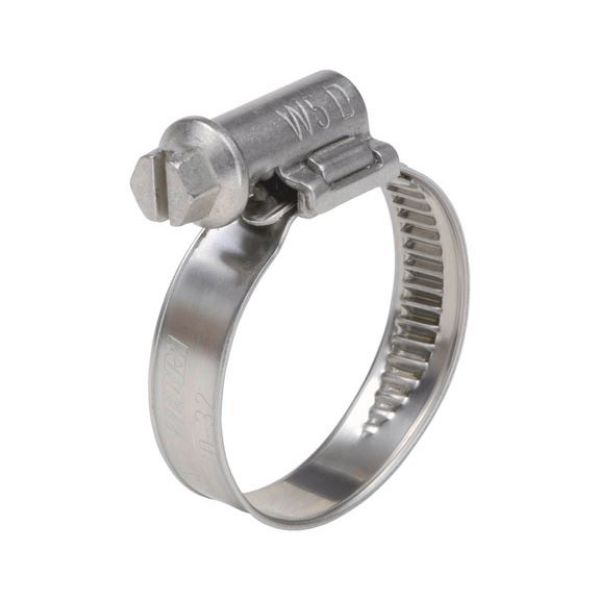

Hose clamp A4

Article No. 053801222

Hose clamp A4 HOSECLMP-A4-DIN3017-W5-W9MM-(12-22MM) ZEBRA

€1.44 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

With asymmetrical lock made entirely of stainless steel

Asymmetrical housing

Even distribution of force
Clamp head does not tilt away during tightening

Embossed inside of band with rounded edges

Prevents injuries and hose damage

Specification
Application
Technical Information
Documents

With asymmetrical lock made entirely of stainless steel

Asymmetrical housing

Even distribution of force
Clamp head does not tilt away during tightening

Embossed inside of band with rounded edges

Prevents injuries and hose damage

Application area

Fuel line systems, air-conveying pipes, cooling water/heating, general clamping/fastening

Products specifications

Material of the clamp band	Stainless steel A4
Surface of the clamp band	Plain
Material of the screw	Stainless steel A4
Material of the housing	Stainless steel A4
Width of band	9 mm
Min./max. grip range	12-22 mm
Drive type	Slot
Width across flats (SW)	7 mm
Tightening torque	3 Nm
Standards	DIN 3017
RoHS-compliant	Yes

Würth Catalogue(2)

Catalogue page as PDF 1 | 2

Products specifications

Material of the clamp band	Stainless steel A4
Surface of the clamp band	Plain
Material of the screw	Stainless steel A4
Material of the housing	Stainless steel A4
Width of band	9 mm
Min./max. grip range	12-22 mm
Drive type	Slot
Width across flats (SW)	7 mm
Tightening torque	3 Nm
Standards	DIN 3017
RoHS-compliant	Yes
