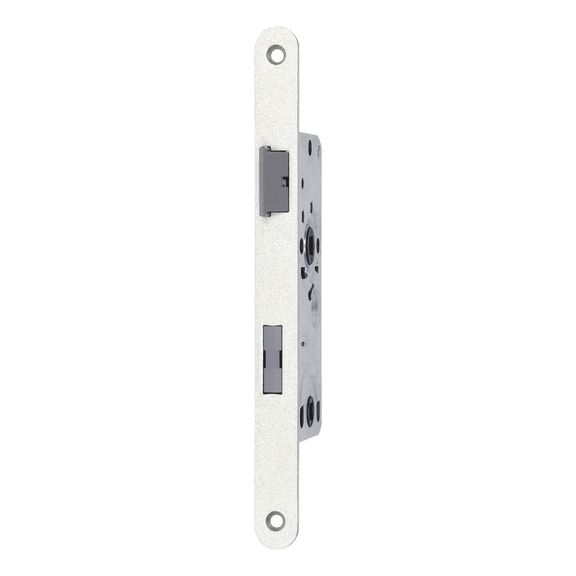

Interior door mortise lock WC, class 1

Article No. 0688501583

Mortise lock interior door WC, class 1 MORTSLOK-CL1-WC-DIN/R-SILVER-GREY-20MM

€10.20 inc. VAT price per 1 PCS

AVAILABLE

Packaging Unit *

Qty:

+ -

Closed lock housing, galvanised

Lock housing support in handle area

When using the lock housing support in the handle area, a significantly higher torque is possible when screwing on the rosettes, meaning that seizing of the handle or breakage of the topcoat of the door is virtually excluded

Locking action via square bolt

Single-turn

Bolt moves 10 mm out of lock

All dimensions in accordance with DIN 18251-1 with fitting openings

Notice

Does not include locking plate

Proof of Performance

Classification key in line with DIN EN 12209: 2003

| 1 | H | 4 | 0 | 0 | B | 1 | B | D | 2 | 0 |

Category of use: 1

Long-term functionality: H

Door mass and closing force: 4

Suitability for fire or smoke protection doors: 0

Safety: 0

Corrosion resistance: B

Protection level and drilling resistance: 1

Door-related usage area: B

Type of key operation and lock: D

Type of spindle operation: 2

Key recognition: 0

Specified dimensions not binding. Subject to technical changes!

Specification
Application
Technical Information

Closed lock housing, galvanised

Lock housing support in handle area

When using the lock housing support in the handle area, a significantly higher torque is possible when screwing on the rosettes, meaning that seizing of the handle or breakage of the topcoat of the door is virtually excluded

Locking action via square bolt

Single-turn

Bolt moves 10 mm out of lock

All dimensions in accordance with DIN 18251-1 with fitting openings

Notice

Does not include locking plate

Proof of Performance

Classification key in line with DIN EN 12209: 2003

| 1 | H | 4 | 0 | 0 | B | 1 | B | D | 2 | 0 |

Category of use: 1

Long-term functionality: H

Door mass and closing force: 4

Suitability for fire or smoke protection doors: 0

Safety: 0

Corrosion resistance: B

Protection level and drilling resistance: 1

Door-related usage area: B

Type of key operation and lock: D

Type of spindle operation: 2

Key recognition: 0

Specified dimensions not binding. Subject to technical changes!

Application area

Suitable for rebated WC and bathroom doors

Products specifications

Suitable for	Rebated toilet and bathroom doors<br>Toilet and bathroom doors
Door lock class	1
Lock type	WC/bathroom
Face plate width	20 mm
Face plate shape	Round
Backset	55 mm
Distance (from handle to lock)	78 mm
DIN direction	DIN R/L
Latch lock bolt throw	Single-turn 10mm
Door-lock hub	8 mm
Material of the square bar	Polyamide
Colour of face plate	Silver metallic
Surface of the face plate	Lacquered
Material of the face plate	Steel
Material of the catch bolt	Polyamide - PA
Material of the bar	Polyamide
Material of the door-lock hub	Polyamide - PA
Material	Steel
Face plate length	235 mm
Face plate thickness	3 mm
Lock-case length	144 mm
Lock-case width	81 mm
Lock-case thickness	15.2 mm
EN standard	12209
DIN	18251-1
