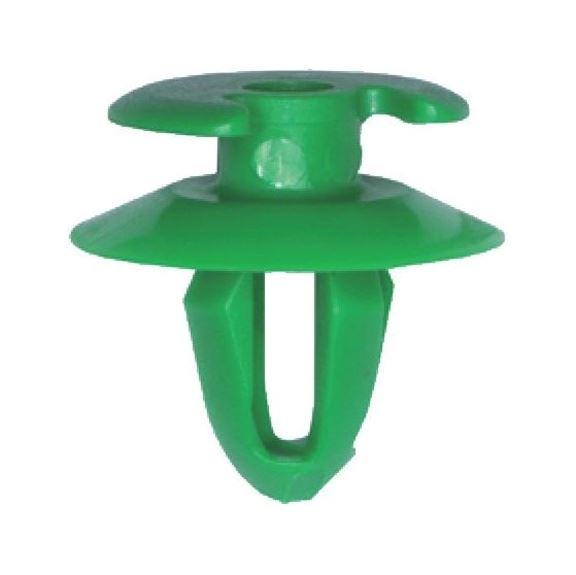

Interior lining clip Type 1

Article No. 050013676

Interior panelling clip, type 1 INPANCLIP-BMW-GREEN

€0.38 inc. VAT price per 1 PCS

AVAILABLE

Qty:

+ -

Foot divided into four parts, head not round

Pre-mounted on the trim and then inserted into a corresponding hole on the base component.
Tolerance compensation possible
Removal of the trim possible
Also serves as a seal

Foot divided into four parts, head not round

Pre-mounted on the trim and then inserted into a corresponding hole on the base component.
Tolerance compensation possible
Removal of the trim possible
Also serves as a seal

Application area

Fastening of trims to carrier components

Products specifications

Material	Polyoxymethylene
Colour	Green
Min./max. drill hole diameter	7.9-8 mm
Min./max. attachment thickness	0.88-1 mm
Head diameter	15 mm
Core diameter	6 mm
Grip range head	3 mm
Max. width	18 mm
Length below head	13.2 mm
Type of vehicle	Universal
Corresponds to original spare part number	51411870718

Products specifications

Material	Polyoxymethylene
Colour	Green
Min./max. drill hole diameter	7.9-8 mm
Min./max. attachment thickness	0.88-1 mm
Head diameter	15 mm
Core diameter	6 mm
Grip range head	3 mm
Max. width	18 mm
Length below head	13.2 mm
Type of vehicle	Universal
Corresponds to original spare part number	51411870718
