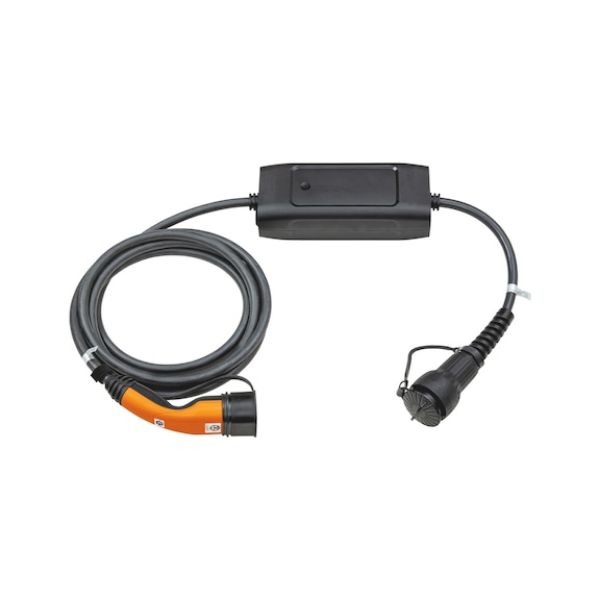

Mobile charging station mode 2 type 2 UNI

Article No. 9501650100
Mobile charging station Mode 2 UNI CHRGSTA-ELVEH-MODE2-UNI
€890.00 inc. VAT price per 1 PCS
Available on Order
Price may vary
*
+ -
Mobile and flexible charging of electric and hybrid vehicles with type 2 plug for at home and on the go

User-friendly

  • Automatic detection of the maximum charging current via coding in the mains cable
  • The integrated control and protection device in the control box (IC-CPD) is responsible for controlling the charging process
  • The IC-CPD in the charging system complies with the IEC 62752 standard and has four LEDs for indicating the charging status and faults
  • The current does not need to be configured nor is any parameterization required (plug and charge)

High degree of flexibility

  • Innovative plugin connector technology that allows different adapters to be used to draw current
  • The wall bracket can be used to convert the mobile charging station into a wall-mounted charging station

High degree of safety

  • A padlock can be used to secure the charging station to the wall bracket to protect against theft
  • The charging station can also withstand being driven over
Notice

Supplied without adapter cable/mains plug. Charging at 16 A and 32 A is also possible by using a corresponding adapter/mains plug. If there is a three-phase connection, charging with 11 kW and 22 kW is also possible.

Mobile and flexible charging of electric and hybrid vehicles with type 2 plug for at home and on the go

User-friendly

  • Automatic detection of the maximum charging current via coding in the mains cable
  • The integrated control and protection device in the control box (IC-CPD) is responsible for controlling the charging process
  • The IC-CPD in the charging system complies with the IEC 62752 standard and has four LEDs for indicating the charging status and faults
  • The current does not need to be configured nor is any parameterization required (plug and charge)

High degree of flexibility

  • Innovative plugin connector technology that allows different adapters to be used to draw current
  • The wall bracket can be used to convert the mobile charging station into a wall-mounted charging station

High degree of safety

  • A padlock can be used to secure the charging station to the wall bracket to protect against theft
  • The charging station can also withstand being driven over
Notice

Supplied without adapter cable/mains plug. Charging at 16 A and 32 A is also possible by using a corresponding adapter/mains plug. If there is a three-phase connection, charging with 11 kW and 22 kW is also possible.

Products specifications
Min./max. input voltage 110-400 V
Frequency 50 Hz
Number of phases charging station 1-3
Min./max. nominal current 6-32 A
Min./max. charging power 1.2-22 kW
Min./max. charging current 6-32 A
Min./max. temperature conditions -20 to 50 °C
Plug vehicle side Type-2
Total length of charging cable 5 m
charging cable design Smooth
Cable type H07BZ5-F 5G6mm² + 1x0,5mm²
Area of application Outdoors<br>Indoors
IP protection class IP 67
IP protection type, charging control box IP 67
IP protection type, Coupling IP 44
Max. residual current protection DC 6 mA/DC
Width 320 mm
Height 84 mm
Depth 124 mm
Product weight (per item) 3500 g
