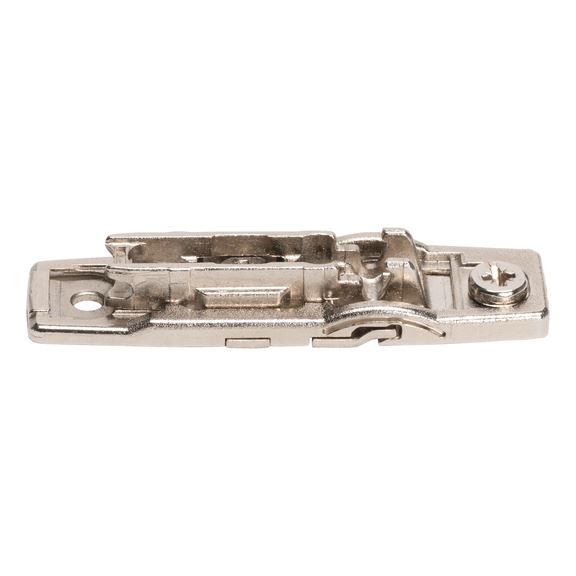

Nexis bar mounting plate

Article No. F060073126
Segment plate Nexis ZD 2-point attachment MNTPLT-NEX-ZD-EC-WUEPOSCR-0MM GRASS NEXIS
€1.25 inc. VAT price per 1 PCS
AVAILABLE
*
+ -
With 2-point attachment

For clip-on assembly of Nexis furniture hinges

Quick to assemble and disassemble furniture doors without the need for tools

Height adjustment: ±2.0 mm

Large adjustment range to compensate for production tolerances

Compact, neat appearance

Height adjustment using eccentric, parallel to the unit's front edge

Depth adjustment using eccentric fitting

  • Easy to adjust doors
  • No need to loosen fastening screws to adjust

Specified dimensions not binding. Subject to technical changes!

With 2-point attachment

For clip-on assembly of Nexis furniture hinges

Quick to assemble and disassemble furniture doors without the need for tools

Height adjustment: ±2.0 mm

Large adjustment range to compensate for production tolerances

Compact, neat appearance

Height adjustment using eccentric, parallel to the unit's front edge

Depth adjustment using eccentric fitting

  • Easy to adjust doors
  • No need to loosen fastening screws to adjust

Specified dimensions not binding. Subject to technical changes!

Products specifications
Mounting plate height 0 mm
Number of mounting points 2-point
Material Steel / Zamak
Surface Nickel-plated
Products specifications
Mounting plate height 0 mm
Number of mounting points 2-point
Material Steel / Zamak
Surface Nickel-plated
